Vehicle Exploded View - GILERA STORM 50 50 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

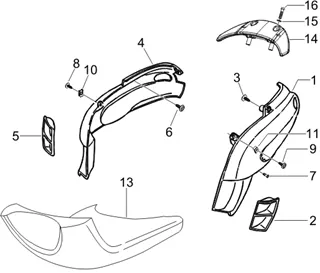

Chassis parties plastiques carrosseries : 02.32 COUVERTURES LATERALES SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/166/Storm_50_2007_02.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/1/8/img/94918.jpg)
1 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON EARLY MODEL UNPAINTED READY TO PAINT-CM0030015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/2/4/img/94924.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> WHITE 724 -CM0030015087- More informationQuantity required : 1 |
||||||
1 |
CM0030015090 - FLANC ARG NOIR 94 EX.923235-923290 More informationQuantity required : 1 |
||||||
|
1 |
CM00300150R7 - FLANC ARG ROUGE 894 More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
2 |
259905000C - PRISE D'AIR GAUCHE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/7/img/94937.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> RAW TO BE PAINTED -CM0030025- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/8/img/94938.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> WHITE 724 -CM0030025087- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/9/img/94939.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> BLACK 94 -CM0030025090 More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/5/6/img/78756.jpg)
5 |
463842000C-PRISE D'AIR RIGHT BLACK More informationQuantity required : 1 |
||||||
|
6 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
|
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
13 |
SPOILER BLACK "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005 -575900- More informationQuantity required : 1 |
||||||
|
14 |
624334000C - POIGNEE ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/8/img/65348.jpg)
15 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-012538 More informationQuantity required : 2 |
||||||
|
16 |
431741-BOLT More informationQuantity required : 2 |
