Vehicle Exploded View - GILERA STORM 50 50 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

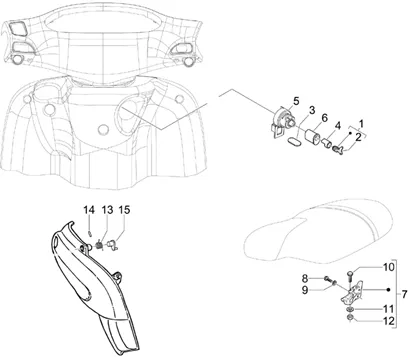

Chassis parties plastiques carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/166/Storm_50_2007_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/3/7/img/77037.jpg)
1 |
SET OF CLES WITH 2 BARILLETS (13 MM) OEM PIAGGIO 50 TYPHOON 2006 > 2010, NRG 2000 > 2004, NTT-2577032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/4/img/66024.jpg)
2 |
EBAUCHE DE CLE OEM PIAGGIO 50 NRG, TYPHOON, ZIP 1998 > 2005-257710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/4/img/65784.jpg)
3 |
PLATE DE MAINTIEN BODY DE LOCK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-178559 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/5/img/65785.jpg)
4 |
BLOC LOCK OEM PIAGGIO VESPA 125 PX, 50 TYPHOON, NRG, THREE-WHEELER APE 50 2T-178562 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/5/1/img/81451.jpg)
5 |
IGNITION KEY SWITCH 4 POLES "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, TYPHOON, ZIP RST/GILERA 50 STALKER OLD MODEL -580639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/4/8/img/77948.jpg)
6 |
BODY DE LOCK OEM PIAGGIO 50 TYPHOON 1998 > 2009, NRG 1998 > 2004, ZIP 1995 > 1999/125 PX/GILERA 50 STALKER-2977775 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/9/9/img/77199.jpg)
7 |
MECANISME OF FASTENING DE SEAT OEM PIAGGIO 50 TYPHOON, NRG 1998 > 2004-268300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
8 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
11 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-195482 More informationQuantity required : 2 |
||||||
12 |
268304-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/3/4/img/77034.jpg)
13 |
SPRING DE CAME DE LOCK DE SEAT OEM PIAGGIO 50 TYPHOON 2T 2011 < 257533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
14 |
EPINGLE DE LOCK OEM PIAGGIO COMMON A LA RANGE-008808 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/3/3/img/77033.jpg)
15 |
CAME DE LOCK DE SEAT OEM PIAGGIO 50 TYPHOON 2T 2011 <-257532 More informationQuantity required : 1 |
