Vehicle Exploded View - GILERA STORM 50 50 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

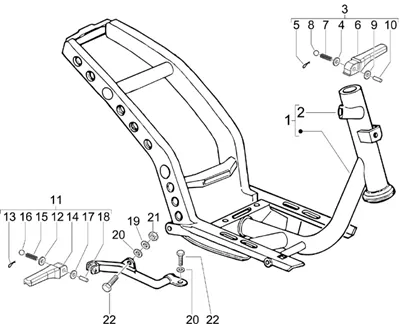

Chassis parties plastiques carrosseries : 02.01 CHASSIS COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/166/Storm_50_2007_02.01.PNG)
1 |
2968405 - CADRE More informationQuantity required : 1 |
||||||
|
2 |
SUPPORT SER TYP HEX |
||||||
|
3 |
296511-FOOTREST G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
4 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
5 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/0/img/66280.jpg)
6 |
REST FEET PASSENGER LEFT/RIGHT OEM PIAGGIO 50 NRG, TYPHOON/GILERA 50 RUNNER-295451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
7 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
7 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
8 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
8 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
9 |
295592 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
10 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 1 |
||||||
|
11 |
577345-FOOTREST D More informationQuantity required : 1 |
||||||
|
12 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
13 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
|
14 |
REST FEET PASSENGER LEFT/RIGHT OEM PIAGGIO 50 NRG, TYPHOON/GILERA 50 RUNNER-295451 More informationQuantity required : 1 |
||||||
|
15 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
15 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
16 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
16 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
17 |
295592 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
18 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 1 |
||||||
|
19 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
20 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
21 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
22 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 3 |
