Vehicle Exploded View - APRILIA SR 125 SR GT 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

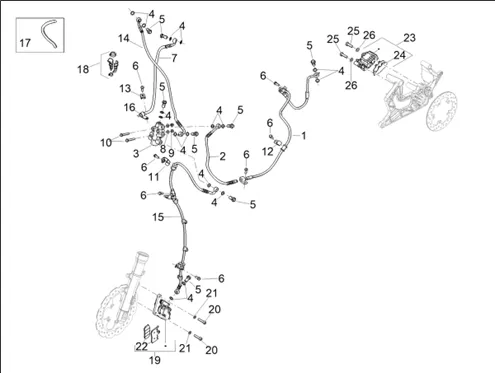

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1322/SR_GT_125_E5_2024_EMEA_05.01.png)
1 |
1C005438-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
1C005928-BRAKE HOSE CBS VALVE-CONNECTION More informationQuantity required : 1 |
||||||
|
3 |
CM082808-VALVE REGLAGE PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
4 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 16 |
||||||
|
5 |
2B011672R-SPECIAL SCREW More informationQuantity required : 8 |
||||||
|
6 |
1C001475-SCREW FLANGE More informationQuantity required : 7 |
||||||
|
7 |
1C006050-MANIFOLD FITTING (REAR PUMP-VALVE) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
10 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
11 |
CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502 More informationQuantity required : 1 |
||||||
|
12 |
598795-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
14 |
1C006049-MANIFOLD FITTING (FRONT PUMP-VALVE) More informationQuantity required : 1 |
||||||
|
15 |
1C007615-FRONT CALIPER BRAKE HOSE-CBS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
16 |
CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918 More informationQuantity required : 1 |
||||||
|
17 |
CM017719 - JOINT More informationQuantity required : 1 |
||||||
|
18 |
2R000565-TG1 SR GT KIT BRACKET More informationQuantity required : 1 |
||||||
|
19 |
CM256502-CALIPER BRAKE More informationQuantity required : 1 |
||||||
|
20 |
1C001492-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
21 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/4/9/4/img/127494.jpg)
22 |
PLAQUETTES BRAKE FRONT OEM PIAGGIO 50-125 LIBERTY I GET, MEDLEY 2015 >/125 SR GT COMPACT 2021 > APRILIA-1C000760 More informationQuantity required : 1 |
||||||
|
23 |
CM294408-CALIPER BRAKE D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/5/img/68005.jpg)
24 |
BRAKE PAD OEM PIAGGIO 125-250-300 MP3 AR, 125-250-300 X7 AR, 125-250 X9-EVO AV-RIGHT, 125-250 X-EVO AR, 400 X8, X-EVO FRONT RIGHT (PAIRE)-647079 More informationQuantity required : 1 |
||||||
|
25 |
1C004086-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
26 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 2 |
