Vehicle Exploded View - APRILIA SR 125 SR GT 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

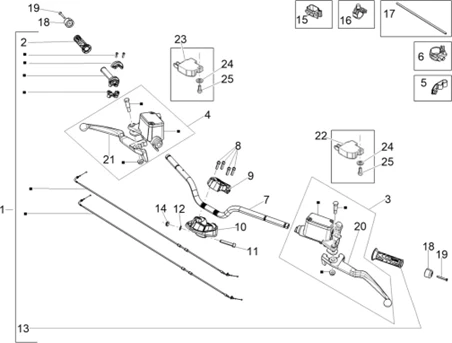

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1322/SR_GT_125_E5_2024_EMEA_03.06.png)
1 |
CM087740-SLEEVE CONTROL ACCELERATEUR COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
2 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271453 More informationQuantity required : 1 |
||||||
|
3 |
CM305504-MAITRE-CYLINDER OF BRAKE LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/4/4/img/195844.jpg)
3 |
BRAKE MASTER CYLINDER LEFT OEM APRILIA 125 SR GT COMPACT 2021 >-CM305505 More informationQuantity required : 1 |
||||||
|
4 |
CM305509 - MAÃ-TRE-CYLINDRE DE FREIN DROIT More informationQuantity required : 1 |
||||||
|
4 |
CM305506 - MAÃ-TRE-CYLINDRE DE FREIN DROIT More informationQuantity required : 1 |
||||||
|
5 |
1C006450-CLAMP WHIT I. P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/1/img/72911.jpg)
6 |
PINCE RETENUE TUYAUX OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
|
7 |
1B008133-HANDLEBAR WITH PIECES INTERNES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
8 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/5/7/img/195857.jpg)
9 |
PONTET UPPER DE HANDLEBAR OEM APRILIA 125 SR GT COMPACT 2021 >-1B008928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/5/8/img/195858.jpg)
10 |
PONTET LOWER DE HANDLEBAR OEM APRILIA 125 SR GT COMPACT 2021 >-1B008927 More informationQuantity required : 1 |
||||||
|
11 |
1B000164-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
12 |
WASHER PLATE (10X18X2. 5) OEM PIAGGIO COMMON A LA RANGE-267917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
13 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
15 |
CM006906-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/9/img/72909.jpg)
15 |
CLAMP MOUNTING (23MM) OEM PIAGGIO COMMON A LA RANGE-CM006908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
16 |
COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905 More informationQuantity required : 1 |
||||||
|
17 |
CM0074A3 MANIFOLD NOT METALLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/3/9/0/img/88390.jpg)
18 |
HANDLEBAR END BLACK OEM PIAGGIO 300 MP3 YOURBAN, 125-300 X7/GILERA 500 FUOCO, 125 RUNNER-654515 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
19 |
SCREW HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/4/7/img/174347.jpg)
20 |
BRAKE LEVER LEFT OEM PIAGGIO 300-400 BEVERLY ABS 2021 >/125 SR COMPACT GT APRILIA 2021 >-1C004981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/4/9/img/174349.jpg)
21 |
BRAKE LEVER RIGHT OEM PIAGGIO 300-400 BEVERLY ABS 2021 >/125 SR COMPACT GT APRILIA 2021 >-1C004980 More informationQuantity required : 1 |
||||||
|
22 |
1D003113 LEFT PUSH BUTTON More informationQuantity required : 1 |
||||||
|
23 |
1D003114 RIGHT PUSH BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
24 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
25 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 2 |
