Vehicle Exploded View - APRILIA SR 125 SR GT 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

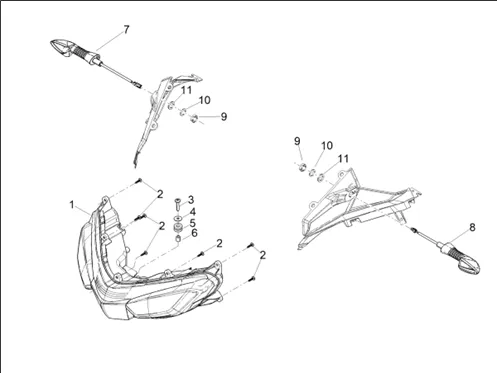

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1322/SR_GT_125_E5_2024_EMEA_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/5/9/img/195859.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125 SR COMPACT GT APRILIA 2021 >-1D003408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
2 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
3 |
SCREW TORX (6X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
4 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
5 |
GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-576565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
6 |
SPACER (6X10X11. 4) OEM PIAGGIO COMMON A LA RANGE-273288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/6/0/img/195860.jpg)
7 |
FRONT RIGHT INDICATOR OEM PIAGGIO 125 SR COMPACT GT APRILIA 2021 >-1D003395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/6/1/img/195861.jpg)
8 |
FRONT RIGHT INDICATOR OEM PIAGGIO 125 SR COMPACT GT APRILIA 2021 >-1D003396 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/4/9/img/72749.jpg)
9 |
NUT PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE-B016992 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/5/img/110335.jpg)
10 |
WASHER SPRING (D12) OEM PIAGGIO COMMON A LA RANGE-016346 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
11 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 4 |
