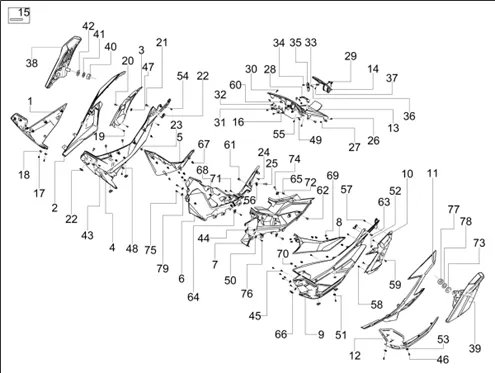

Vehicle Exploded View - APRILIA SR 125 SR GT 125 E5+ 2024 (EMEA)

	P2R reference	213860
	Maker reference	1B008104000NS

1B008104000NS - SPOILER DROITE, NOIR

	P2R reference	195709
	Maker reference	1B008104000EU

1B008104000EU - SPOILER DROIT

	P2R reference	195708
	Maker reference	1B008104

1B008104 - RIGHT SPOILER

	P2R reference	195710
	Maker reference	1B008902

1B008902 - FERMETURE

	P2R reference	195711
	Maker reference	1B008904

1B008904 - COVER RH

	P2R reference	195712
	Maker reference	1B008115

1B008115 - REPOSE-PIED DROIT

	P2R reference	195714
	Maker reference	1B008123000ND

1B008123000ND - PROTECTION LATERALE D

	P2R reference	195713
	Maker reference	1B008123000NS

1B008123000NS - PROTECTION LATERALE D

	P2R reference	195716
	Maker reference	1B008123

1B008123 - PROTECTION LATERALE D

	P2R reference	213892
	Maker reference	1B008123000B07

1B008123000B07 - PROTECTION LATÃ-RALEÂ D

	P2R reference	195717
	Maker reference	1B008123000D08

1B008123000D08 - PROTECTION LATERALE D

	P2R reference	195715
	Maker reference	1B008123000EZ

1B008123000EZ - PROTECTION LATERALE D

	P2R reference	195718
	Maker reference	1B008125

1B008125 - PROTECTION CENTRALE D

	P2R reference	195719
	Maker reference	1B008124

1B008124 - PROTECTION CENTRALE G

	P2R reference	195724
	Maker reference	1B008122

1B008122 - PROTECTION LATERALE G

	P2R reference	213893
	Maker reference	1B008122000B07

1B008122000B07 - PROTECTION LATÃ-RALEÂ G

	P2R reference	195721
	Maker reference	1B008122000D08

1B008122000D08 - PROTECTION LATERALE G

	P2R reference	195722
	Maker reference	1B008122000EZ

1B008122000EZ - PROTECTION LATERALE G

	P2R reference	195723
	Maker reference	1B008122000ND

1B008122000ND - PROTECTION LATERALE G

	P2R reference	195720
	Maker reference	1B008122000NS

1B008122000NS - PROTECTION LATERALE G

	P2R reference	195725
	Maker reference	1B008114

1B008114 - TAPIS GAUCHE

	P2R reference	195726
	Maker reference	1B008903

1B008903 - COUVERCLE GAUCHE

	P2R reference	195727
	Maker reference	1B008901

1B008901 - FERMETURE GAUCHE

	P2R reference	213861
	Maker reference	1B008103000NS

1B008103000NS - SPOILER GAUCHE, NOIR

	P2R reference	195729
	Maker reference	1B008103000EU

1B008103000EU - SPOILER GAUCHE

	P2R reference	195728
	Maker reference	1B008103

1B008103 - LH SPOILER

	P2R reference	195730
	Maker reference	1B008063

1B008063 - CAPOT CENTRAL

	P2R reference	195731
	Maker reference	1B008064

1B008064 - TRAPPE A CARBURANT

	P2R reference	195746
	Maker reference	CM006321

CM006321 - PACKING

	P2R reference	195742
	Maker reference	1B010103

1B010103 - PLATE

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	96280
	Maker reference	CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	109019
	Maker reference	157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

	P2R reference	195734
	Maker reference	1B010002

1B010002 - PLATE

	P2R reference	195735
	Maker reference	1B010001

1B010001 - SPRING FOR FUEL DOOR

	P2R reference	73359
	Maker reference	CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

	P2R reference	195741
	Maker reference	1B008075

1B008075 - CARRIER DOOR PIN

	P2R reference	67117
	Maker reference	575604

SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604

	P2R reference	72011
	Maker reference	AP8161182

FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182

	P2R reference	81221
	Maker reference	577399

577399 - RESSORT

	P2R reference	195739
	Maker reference	1B009199

1B009199 - LEVER

	P2R reference	195740
	Maker reference	1B009532

1B009532 - PIN

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

	P2R reference	195674
	Maker reference	1B006637

1B006637 - REPOSE-PIEDS PASSAGER D COMPLET

	P2R reference	166533
	Maker reference	1B006637000NU

1B006637000NU - REPOSE-PIEDS PASSAGER D COMPLET

	P2R reference	195675
	Maker reference	1B006635

1B006635 - REPOSE-PIEDS PASSAGER G COMPLET

	P2R reference	166534
	Maker reference	1B006635000NU

1B006635000NU - REPOSE-PIEDS PASSAGER G COMPLET

	P2R reference	65465
	Maker reference	0201105

020110 - ECROU

	P2R reference	65346
	Maker reference	0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

	P2R reference	63804
	Maker reference	0061735

006173 - RONDELLE S00617300

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	96280
	Maker reference	CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	73372
	Maker reference	CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

	P2R reference	73372
	Maker reference	CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

	P2R reference	63804
	Maker reference	0061735

006173 - RONDELLE S00617300

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	73359
	Maker reference	CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

	P2R reference	73359
	Maker reference	CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

	P2R reference	65465
	Maker reference	0201105

020110 - ECROU

	P2R reference	65346
	Maker reference	0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410
