Vehicle Exploded View - APRILIA SR 50 H20 Ditech Carb 00-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

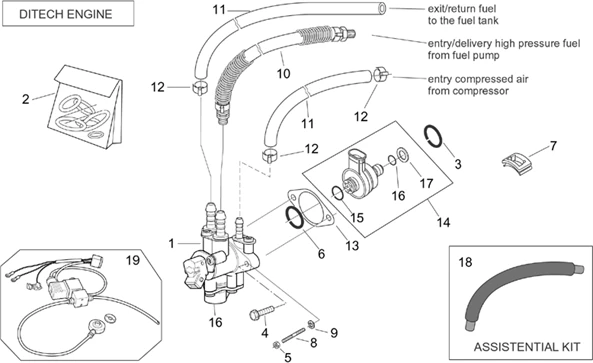

Moteur : 29.56 GROUP INJECTION (DITECH)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_29.56.PNG)
1 |
AP5RAR000176-VALVE ADMIS More informationQuantity required : 1 |
||||||
|
1 |
AP3AEA000547-VALVE DE INJ. More informationQuantity required : 1 |
||||||
|
2 |
AP5RZR000232 - KIT O-RING; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/7/4/img/44674.jpg)
3 |
O-RING (17X3. 5) INJECTEUR OEM APRILIA 50 SR H2O 2000 > 2004-AP2EAN000186 More informationQuantity required : 1 |
||||||
|
3 |
AP2EAN000258-O-RING More informationQuantity required : 1 |
||||||
|
4 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
5 |
NUT M5 OEM PIAGGIO COMMON A RANGE-AP8150025 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/6/img/68916.jpg)
6 |
O-RING INJECTEUR (14. 4X18. 2X2. 5) OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-830433 More informationQuantity required : 1 |
||||||
|
6 |
O-RING (17X3. 5) INJECTEUR OEM APRILIA 50 SR H2O 2000 > 2004-AP2EAN000186 More informationQuantity required : 1 |
||||||
|
7 |
AP3AVN000245 - CAOUTCHOUC DE FERM. More informationQuantity required : 1 |
||||||
|
7 |
AP3AVN000199-RUBBER DE FERM. More informationQuantity required : 1 |
||||||
|
8 |
AP4BAN000222 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
9 |
AP4DFN000032 - RONDELLE GROWER More informationQuantity required : 2 |
||||||
|
10 |
Kit tube pompe a essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/7/0/img/62870.jpg)
11 |
COMPRESSOR HIGH PRESSURE PIPE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O, SCARABEO H2O -CM223702 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/8/2/img/44682_20251023155854.jpg)
12 |
CLAMP HOSE (D 14. 2) OEM PIAGGIO COMMON A LA RANGE-AP2FDN000200 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/7/4/2/img/44742.jpg)
13 |
PAPER GASKET FOR INJECTOR "PIAGGIO GENUINE PART" APRILIA 50 SR H2O INJECTION -AP3AVA000438 More informationQuantity required : 1 |
||||||
|
14 |
AP3AGA000137 - INJECTION AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/5/img/68845.jpg)
14 |
AIR INJECTOR "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -829480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/0/7/img/45007.jpg)
15 |
O-RING UPPER INJECTEUR OEM PIAGGIO APRILIA 50 SR H2O 2000 > 2007-AP5RAR000109 More informationQuantity required : 1 |
||||||
|
16 |
INJECTOR O'RING GASKET (LOWER) "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP5RAR000108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/4/img/69104.jpg)
17 |
GASKET D'INJECTEUR D'AIR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION-834176 More informationQuantity required : 1 |
||||||
|
18 |
Tuyau isolé |
||||||
|
19 |
AP8276090 - KIT SPURGO CONDENSA DITECH More informationQuantity required : 1 |
