Vehicle Exploded View - APRILIA SR 50 H20 Ditech Carb 00-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

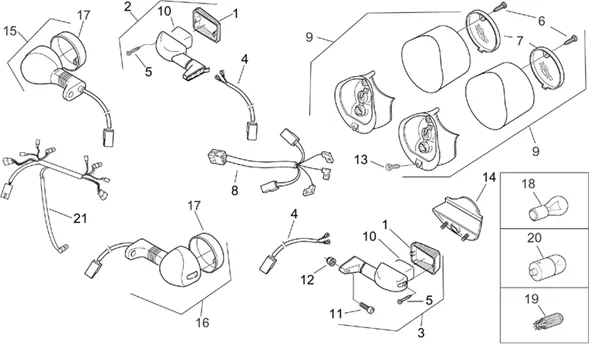

Chassis : 28.32 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_28.32.PNG)
1 |
AP8224346 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
|
2 |
AP8224340 - CLIGNOTANT ARRIERE DROITE/AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
AP8224341 - CLIGNOTANT ARRIERE GAUCHE/AVANT DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
4 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 2 |
||||||
|
5 |
AP8224268 - VIS More informationQuantity required : 2 |
||||||
|
6 |
AP8212934 - VIS TARAUD BLANCHE More informationQuantity required : 2 |
||||||
|
7 |
CABOCHON OF REAR LIGHT OEM PIAGGIO APRILIA 50 SR H2O-AP8224256 More informationQuantity required : 1 |
||||||
|
8 |
AP8212775 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
8 |
AP8212937 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
9 |
AP8224245 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
10 |
AP8224347 - CARTER INT.; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
11 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
14 |
AP8224196 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
|
15 |
AP8224174 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
|
16 |
AP8224173-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
17 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
18 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
19 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
|
21 |
AP8127002 - CABLAGE FEU More informationQuantity required : 1 |
