Vehicle Exploded View - APRILIA SR 50 H20 Ditech Carb 00-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

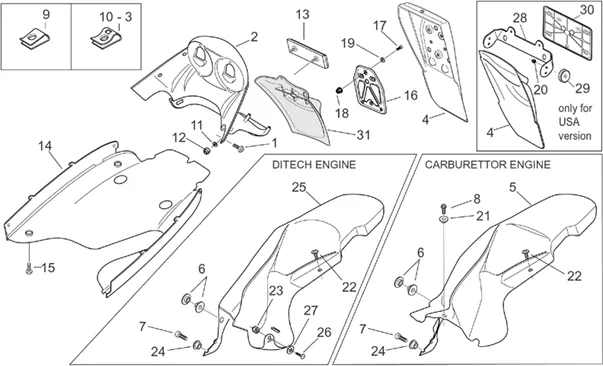

Chassis : 28.14 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
1 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
|||||||||
2 |
AP8226602 - PORTE-PLAQUE NOIR MET.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226627-DOOR-PLATE BLACK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
4 |
AP8226603-BAVOLET AR, BLACK MET. More informationQuantity required : 1 |
|||||||||
|
4 |
AP8226626-BAVOLET AR, BLACK More informationQuantity required : 1 |
|||||||||
|
5 |
REAR MUDGUARD "PIAGGIO GENUINE PART" APRILIA 50 SR 2000>2004 -AP8226660 More informationQuantity required : 1 |
|||||||||
|
6 |
AP8221218-BUSH GUARD-MUD More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
7 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150220 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
9 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
11 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
13 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
|||||||||
|
14 |
AP8249762 - PROTECTION RESERVOIR NOIR MET. More informationQuantity required : 1 |
|||||||||
|
14 |
AP8258562 - PROTECTION RESERVOIR GRIS; More informationQuantity required : 1 |
|||||||||
|
14 |
AP8258790 - PROTECTION RESERVOIR OR; More informationQuantity required : 1 |
|||||||||
|
15 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/8/0/8/img/58808.jpg)
16 |
BRACKET PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE 50 CC APRILIA-AP8249558 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
17 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 3 |
|||||||||
|
18 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 3 |
|||||||||
|
19 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
21 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
22 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
|
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
23 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
24 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 1 |
|||||||||
|
25 |
AP8226749 - GARDE-BOUE ARRIERE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
26 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 1 |
|||||||||
|
27 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
|||||||||
|
28 |
AP8258253-AR. BRACKET CATADIOPTRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
29 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
30 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
|||||||||
|
31 |
AP8149303-BRACKET ECLAIRAGE PLATE BLACK More informationQuantity required : 1 |
|||||||||
