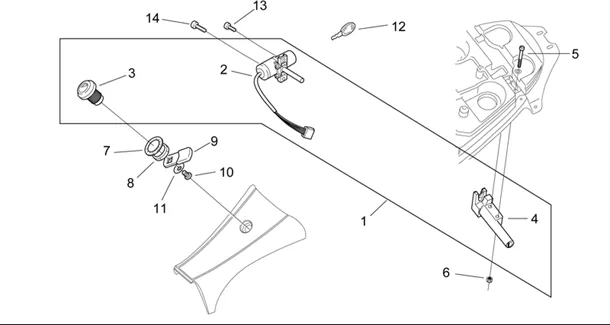

Vehicle Exploded View - APRILIA SR 50 H20 Ditech Carb 00-04 APRILIA

Chassis : 28.34 KIT SERRURE
Kit serrure
Search
AP8202386 - KIT SERRATURE

1
P2R reference P2R reference 55481
Maker reference Maker reference AP8202386

AP8202386 - KIT SERRATURE

More information

Quantity required : 1

AP8224343 - BLOC DEMARREUR-BLOC;

2
P2R reference P2R reference 57361
Maker reference Maker reference AP8224343

AP8224343-BLOC STARTER MOTOR-BLOC

More information

Quantity required : 1

LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609-

3
P2R reference P2R reference 45421
Maker reference Maker reference AP8104609

KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609

More information

Quantity required : 1

AP8201564 - SERRURE SELLE;

4
P2R reference P2R reference 55369
Maker reference Maker reference AP8201564

AP8201564-LOCK SEAT

More information

Quantity required : 1

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283

5
P2R reference P2R reference 50976
Maker reference Maker reference AP8152283

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

6
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

More information

Quantity required : 2

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

7
P2R reference P2R reference 57054
Maker reference Maker reference AP8221312

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

More information

Quantity required : 1

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

8
P2R reference P2R reference 50968
Maker reference Maker reference AP8152194

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

More information

Quantity required : 1

LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620

9
P2R reference P2R reference 55375
Maker reference Maker reference AP8201620

LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620

More information

Quantity required : 1

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749

10
P2R reference P2R reference 72141
Maker reference Maker reference AP8201749

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749

More information

Quantity required : 1

WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748

11
P2R reference P2R reference 55385
Maker reference Maker reference AP8201748

WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748

More information

Quantity required : 1

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

12
P2R reference P2R reference 45423
Maker reference Maker reference AP8104613

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

More information

Quantity required : 1

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

13
P2R reference P2R reference 71919
Maker reference Maker reference AP8152140

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

14
P2R reference P2R reference 71824
Maker reference Maker reference AP8150137

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

More information

Quantity required : 1
