Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

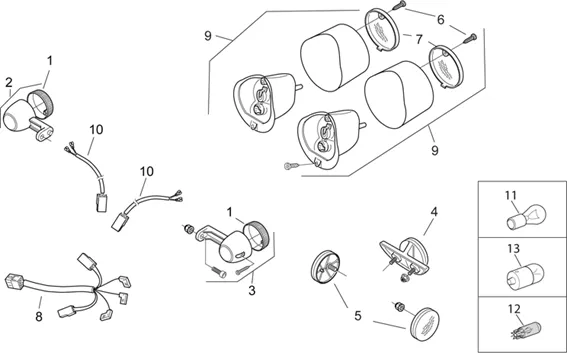

Chassis : 28.36 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
1 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 2 |
||||||
2 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
|
3 |
AP8212699-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 1 |
||||||
|
4 |
AP8212813-CATADIOPTRE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
4 |
AP8224196 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
5 |
CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163 More informationQuantity required : 2 |
||||||
|
5 |
AP8224023-CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
|
6 |
AP8212934 - VIS TARAUD BLANCHE More informationQuantity required : 2 |
||||||
|
7 |
CABOCHON OF REAR LIGHT OEM PIAGGIO APRILIA 50 SR H2O-AP8224256 More informationQuantity required : 1 |
||||||
|
8 |
AP8212775 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
8 |
AP8212937 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
9 |
AP8224167 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
|
9 |
AP8224245 - FEU ARRIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
10 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
11 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
12 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
13 |
|
