Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

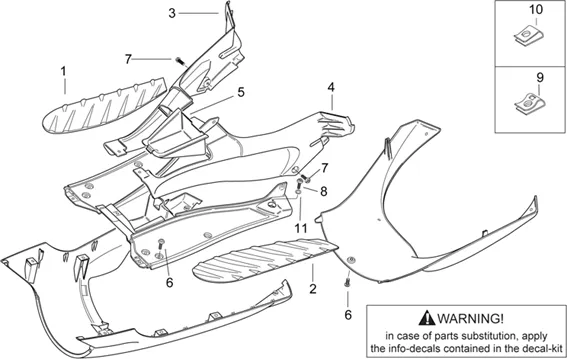

Chassis : 28.10 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.10.PNG)
1 |
AP8238514 - TAPIS DTE; More informationQuantity required : 1 |
||||||
|
1 |
AP8248665 - TAPIS D NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8238515 - TAPIS GCHE; More informationQuantity required : 1 |
||||||
|
2 |
AP8248666-MAT G BLACK * More informationQuantity required : 1 |
||||||
|
3 |
Tunnel dte gris; |
||||||
|
3 |
AP8249221 - TUNNEL DTE GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8258040 - TUNNEL DTE, NOIR MET.; More informationQuantity required : 1 |
||||||
|
4 |
Tunnel gche gris; |
||||||
|
4 |
AP8249222 - TUNNEL GCHE GRIS More informationQuantity required : 1 |
||||||
|
4 |
AP8258041 - TUNNEL GCHE, NOIR MET.; More informationQuantity required : 1 |
||||||
|
5 |
AP8238507-TROUSSE A OUTILS GRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
7 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
9 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
|
11 |
AP8221046 - ENTRETOISE More informationQuantity required : 2 |
