Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

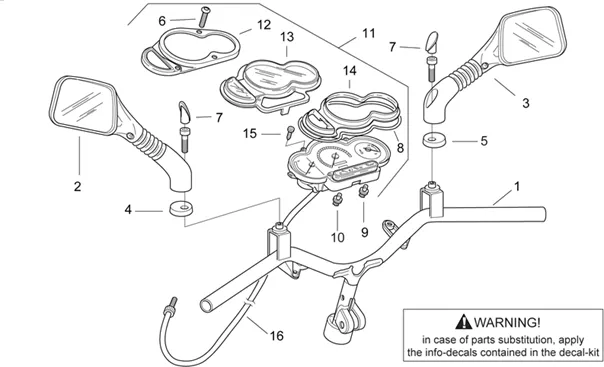

Chassis : 28.18 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/3/7/img/56637.jpg)
1 |
HANDLEBAR OEM PIAGGIO APRILIA 50 SR H2O 1997 > 2012-AP8218210 More informationQuantity required : 1 |
||||||
2 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
3 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50 SR 1993 > 2012, AMICO 1994 > 1998, GULLIVER 1995 > 1998-AP8201975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/9/0/img/56890.jpg)
4 |
RUBBER LEFT MIRROR OEM APRILIA 50 SR H2O 1997 > 2012-AP8220454 More informationQuantity required : 1 |
||||||
|
5 |
AP8220453-RUBBER MIROIR RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/8/img/72308.jpg)
6 |
SCREW TORX HEAD BOMBEE (3. 5X20) OEM PIAGGIO COMMON A LA RANGE-AP8221242 More informationQuantity required : 4 |
||||||
|
7 |
AP8202071-CAP RETRO DTE + GCHE More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
|
8 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
9 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
10 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 2 |
||||||
|
11 |
Tableau de bord; |
||||||
|
11 |
Tableau de bord |
||||||
|
11 |
Tableau de bord; |
||||||
|
12 |
Cache tém.sans verre; |
||||||
|
13 |
AP8212873 - PROT. VITRE TABL.BORD; More informationQuantity required : 1 |
||||||
|
14 |
Tablier éclairage rouge |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
15 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
16 |
AP8214163 - CABLE COMPTEUR KM; More informationQuantity required : 1 |
