Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

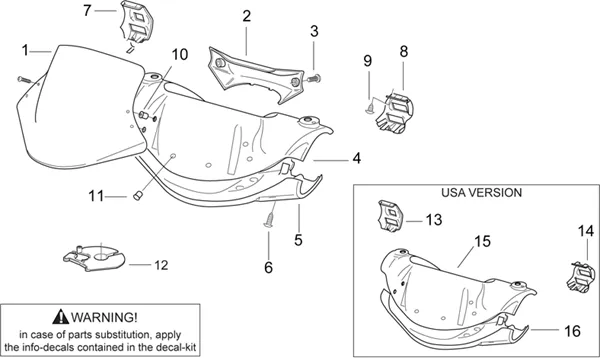

Chassis : 28.05 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.05.PNG)
1 |
AP8139787 - VITRE COUPOLE BLEUE; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8238345 - VITRE COUPOLE BLEUE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248147-PLAQ. GUID. GREY MET. More informationQuantity required : 1 |
|||||||||
|
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
4 |
AP8239070 - SUPPORT PEINT NOIRE; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8239080 - SUPPORT PEINT BLEU R.; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8239398 - SUPPORT GRIS; More informationQuantity required : 1 |
|||||||||
|
4 |
Support peint rossa; |
|||||||||
|
4 |
Support noir+décalco; |
|||||||||
|
4 |
AP8239728 - SUPPORT BLEU APRILIA+DECALCO; More informationQuantity required : 1 |
|||||||||
|
4 |
Supp t.b bl. brio; |
|||||||||
|
4 |
AP8258833 - TABLEAU BORD ROUGE; More informationQuantity required : 1 |
|||||||||
|
4 |
Sup.t-d-b noi.shin.; |
|||||||||
|
4 |
Sup.t-de-b- jaune Cyb.; |
|||||||||
|
5 |
AP8238344-BASE T? TE, GRISE More informationQuantity required : 1 |
|||||||||
|
5 |
AP8248653-BASE T? TE N. METAL * More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/2/5/9/img/58259.jpg)
7 |
COVER RIGHT DE CONTACTEURS OEM PIAGGIO APRILIA 50 SR H2O 1997 > 2012-AP8238748 More informationQuantity required : 1 |
|||||||||
|
8 |
HALF SHELL FOR LEFT SWITCH "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8238749- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
9 |
SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
10 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
11 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 2 |
|||||||||
|
12 |
AP8238806-LATCH INF. MUSEAU, BLACK More informationQuantity required : 1 |
|||||||||
|
13 |
AP8139702-SUP. POUSSOIRS D N More informationQuantity required : 1 |
|||||||||
|
14 |
AP8249137-SUP. POUSSOIRS G N More informationQuantity required : 1 |
|||||||||
|
15 |
Sup.t-d-b noi.shin.; |
|||||||||
|
15 |
Sup.t-de-b- jaune Cyb.; |
|||||||||
|
15 |
Sup.t-d-b ro fl.+Déc.; |
|||||||||
|
15 |
AP8258091 - T DE B. GRIS NIK.; More informationQuantity required : 1 |
|||||||||
|
16 |
AP8248653-BASE T? TE N. METAL * More informationQuantity required : 1 |
|||||||||
