Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

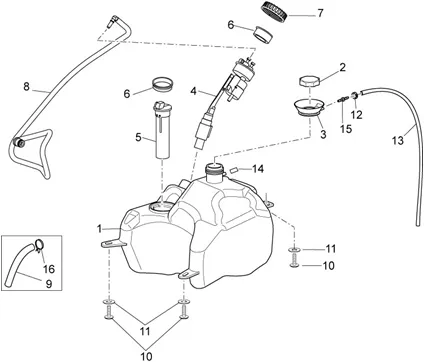

Tavole : 24 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_24.PNG)
1 |
AP8179446 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
2 |
AP8144782-CAP TANK BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/3/img/71753.jpg)
3 |
RUBBER COLLECTE FUEL OEM PIAGGIO COMMON A LA RANGE-AP8144187 More informationQuantity required : 1 |
||||||
|
4 |
858506-PUMP ALIMENTATION More informationQuantity required : 1 |
||||||
|
5 |
AP8127828-SONDA BENZINA More informationQuantity required : 1 |
||||||
|
6 |
AP8144422-GASKET More informationQuantity required : 2 |
||||||
|
7 |
AP8158359-BUSH More informationQuantity required : 1 |
||||||
|
8 |
656065-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
9 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
11 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
|
12 |
AP8101770-CLAMP CLIC More informationQuantity required : 1 |
||||||
|
13 |
896570-HOSE More informationQuantity required : 1 |
||||||
|
14 |
AP8144298-CAP PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
15 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
|
16 |
AP8104451-GUIDE-CABLE More informationQuantity required : 1 |
