Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

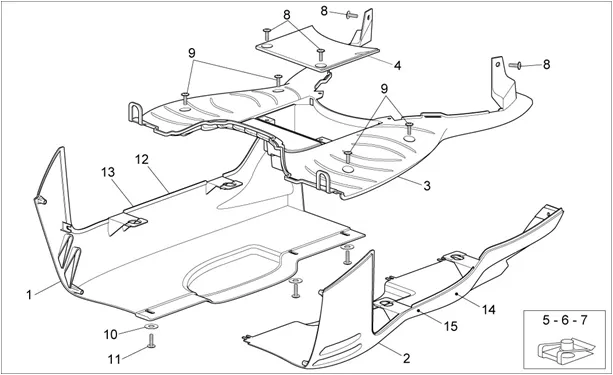

Tavole : 12 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_12.PNG)
1 |
89015300XN6-SOUS-REP-FEET BLACK D. More informationQuantity required : 1 |
||||||
|
2 |
89015400XN6-SOUS-REP-FEET BLACK G. More informationQuantity required : 1 |
||||||
|
3 |
AP8184447 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
AP8184277-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
9 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
10 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
|
12 |
B045147-DECAL More informationQuantity required : 1 |
||||||
|
13 |
B045149-DECAL More informationQuantity required : 1 |
||||||
|
14 |
B045148-DECAL More informationQuantity required : 1 |
||||||
|
15 |
B045150-DECAL More informationQuantity required : 1 |
