Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012 APRILIA

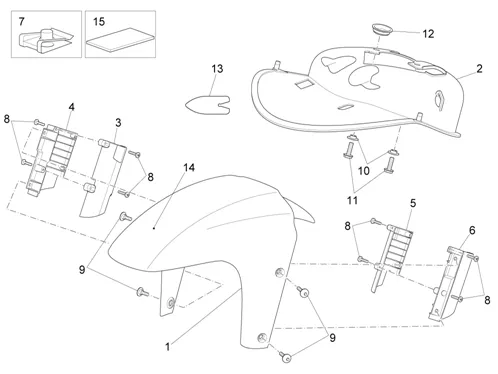

Tavole : 08 CARROSSERIE AV. - GARDE-BOUE AV
Carrosserie av. - Garde-boue AV
Search
89582900XN6 - GARDE-B AV.NOIR

1
P2R reference P2R reference 42372
Maker reference Maker reference 89582900XN6

89582900XN6 - GARDE-B AV.NOIR

More information

Quantity required : 1

AP8178078 - CAPPELLO

2
P2R reference P2R reference 72092
Maker reference Maker reference AP8178078

AP8178078-CAPPELLO

More information

Quantity required : 1

AP8163331 - MORSETTO INTERNO PARAFANGO DX

3
P2R reference P2R reference 72062
Maker reference Maker reference AP8163331

AP8163331-MORSETTO INTERNO MUDGUARD DX

More information

Quantity required : 1

COVER RIGHT FRONT MUDGUARD OEM APRILIA SPORT CITY 125-300 2004 > 2012-AP8163332

4
P2R reference P2R reference 72063
Maker reference Maker reference AP8163332

COVER RIGHT FRONT MUDGUARD OEM APRILIA SPORT CITY 125-300 2004 > 2012-AP8163332

More information

Quantity required : 1

AP8163473 - MORSETTO INTERNO PARAFANGO SX

5
P2R reference P2R reference 72073
Maker reference Maker reference AP8163473

AP8163473-MORSETTO INTERNO MUDGUARD SX

More information

Quantity required : 1

AP8163474 - MORSETTO ESTERNO PARAFANGO SX

6
P2R reference P2R reference 72074
Maker reference Maker reference AP8163474

AP8163474-MORSETTO ESTERNO MUDGUARD SX

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

7
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

8
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 8

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

9
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 4

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

9
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 4

BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075

10
P2R reference P2R reference 71432
Maker reference Maker reference AP8121075

BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117

11
P2R reference P2R reference 71914
Maker reference Maker reference AP8152117

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117

More information

Quantity required : 2

AP8248897 - BOUCHON NOIR MET.;

12
P2R reference P2R reference 72341
Maker reference Maker reference AP8248897

AP8248897 - BOUCHON NOIR MET.;

More information

Quantity required : 1

852081 - PLAQUETTE

13
P2R reference P2R reference 69638
Maker reference Maker reference 852081

852081-PLATE

More information

Quantity required : 2

896790 - DECALCO

14
P2R reference P2R reference 42615
Maker reference Maker reference 896790

896790-DECAL

More information

Quantity required : 1

AP8117125 - EPONGE ADHESIVE;

15
P2R reference P2R reference 46223
Maker reference Maker reference AP8117125

AP8117125-EPONGE ADHESIVE

More information

Quantity required : 1
