Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

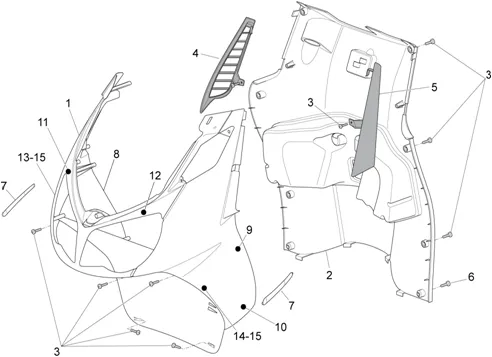

Tavole : 10 CARROSSERIE AV. - TABLIER INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_10.PNG)
1 |
86030100XN5 - TABLIER EXT. NOIR More informationQuantity required : 1 |
||||||
|
1 |
86030100XR7 - TABLIER EXT. NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8184258 - TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/7/0/img/70770.jpg)
4 |
GRILLE DE RADIATOR RIGHT OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY-890155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/7/1/img/70771.jpg)
5 |
GRILLE DE RADIATOR LEFT OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY-890156 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
6 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
|
7 |
AP8179730-MODANATURA SIDE More informationQuantity required : 1 |
||||||
|
8 |
B045140-DECAL More informationQuantity required : 1 |
||||||
|
9 |
B045141-DECAL More informationQuantity required : 1 |
||||||
|
10 |
B045158 - DECALCO More informationQuantity required : 2 |
||||||
|
11 |
B045142-DECAL More informationQuantity required : 1 |
||||||
|
12 |
B045143-DECAL More informationQuantity required : 1 |
||||||
|
13 |
B045144-DECAL More informationQuantity required : 1 |
||||||
|
13 |
B045163-DECAL More informationQuantity required : 1 |
||||||
|
14 |
B045145-DECAL More informationQuantity required : 1 |
||||||
|
14 |
B045164-DECAL More informationQuantity required : 1 |
||||||
|
15 |
B045168 - DECALCO More informationQuantity required : 2 |
