Vehicle Exploded View - APRILIA SPORT CITY CUBE 125 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

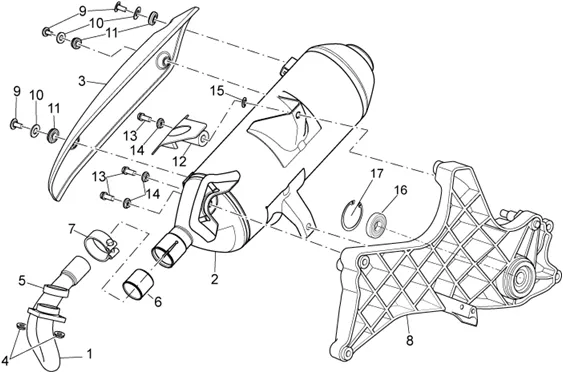

Chassis : 28.31 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/281/Sport_City_Cube_125_carb_E3_2008-2010_28.31.PNG)
1 |
890136-MANIFOLD ECHAPP. More informationQuantity required : 1 |
||||||
|
2 |
AP8119911-SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/6/img/69516.jpg)
3 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 125-250 BEVERLY, CARNABY/GILERA 125 RUNNER, NEXUS-847308 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
4 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/2/img/66602.jpg)
5 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
6 |
GASKET GRAPHITE SILENCER OEM PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX-8263885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/3/img/69333.jpg)
7 |
CLAMP SERRAGE TUBE EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250-300-8449404 More informationQuantity required : 1 |
||||||
|
8 |
AP8154048 - PIASTRA SUPPORTO MARMITTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
10 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
11 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 3 |
||||||
|
12 |
AP8119925-CAP MARMITTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
13 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
14 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
15 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8120508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
16 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
17 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
