Vehicle Exploded View - APRILIA SPORT CITY CUBE 125 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

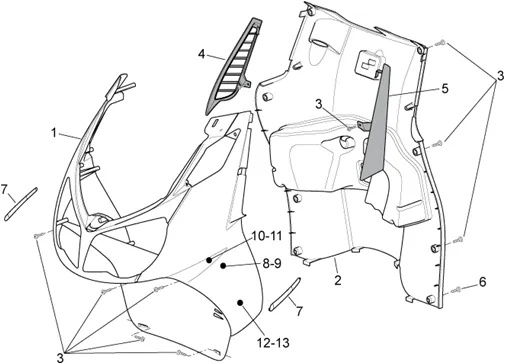

Chassis : 28.10 CARROSSERIE AV. - TABLIER INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/281/Sport_City_Cube_125_carb_E3_2008-2010_28.10.PNG)
1 |
86030100BM - TABLIER EXT. BLANC More informationQuantity required : 1 |
||||||
|
1 |
86030100XD2 - TABLIER EXT. BLEU More informationQuantity required : 1 |
||||||
|
1 |
86030100XE4 - TABLIER EXT., SILVER More informationQuantity required : 1 |
||||||
|
1 |
86030100XEL - TABLIER EXT. GRIS More informationQuantity required : 1 |
||||||
|
1 |
86030100XN5 - TABLIER EXT. NOIR More informationQuantity required : 1 |
||||||
|
1 |
86030100XN6 - TABLIER EXT. NOIR I. More informationQuantity required : 1 |
||||||
|
2 |
AP8184258 - TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/7/0/img/70770.jpg)
4 |
GRILLE DE RADIATOR RIGHT OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY-890155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/7/1/img/70771.jpg)
5 |
GRILLE DE RADIATOR LEFT OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY-890156 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
6 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
|
7 |
AP8179730-MODANATURA SIDE More informationQuantity required : 2 |
||||||
|
8 |
896791-DECAL D. More informationQuantity required : 1 |
||||||
|
8 |
896918-DECAL More informationQuantity required : 1 |
||||||
|
8 |
896925-DECAL More informationQuantity required : 1 |
||||||
|
8 |
897874-DECAL More informationQuantity required : 1 |
||||||
|
9 |
896792-DECAL G. More informationQuantity required : 1 |
||||||
|
9 |
896919-DECAL More informationQuantity required : 1 |
||||||
|
9 |
896926-DECAL More informationQuantity required : 1 |
||||||
|
9 |
897875-DECAL More informationQuantity required : 1 |
||||||
|
10 |
897870-DECAL More informationQuantity required : 1 |
||||||
|
11 |
897871-DECAL More informationQuantity required : 1 |
||||||
|
12 |
897872-DECAL More informationQuantity required : 1 |
||||||
|
13 |
897873-DECAL More informationQuantity required : 1 |
