Vehicle Exploded View - APRILIA SPORT CITY CUBE 125 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

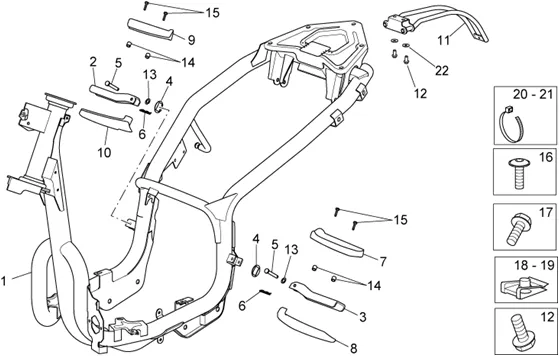

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/281/Sport_City_Cube_125_carb_E3_2008-2010_28.01.PNG)
1 |
8907615 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
AP8146883 - PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8146884 - PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
4 |
AP8161023-RONDELLA FORO QUADRO More informationQuantity required : 2 |
||||||
|
5 |
AP8135677-PIVOT REST-FEET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
6 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 2 |
||||||
|
7 |
AP8178095-GOMMA PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
8 |
AP8184263-COVER More informationQuantity required : 1 |
||||||
|
9 |
AP8178094-GOMMA PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
10 |
AP8184262-COVER More informationQuantity required : 1 |
||||||
|
11 |
890883-BRACKET PLATE IM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
12 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.jpg)
13 |
WASHER SPRING (8X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150502 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
14 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
15 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
20 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
21 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
22 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
