Vehicle Exploded View - APRILIA SPORT CITY CUBE 125 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

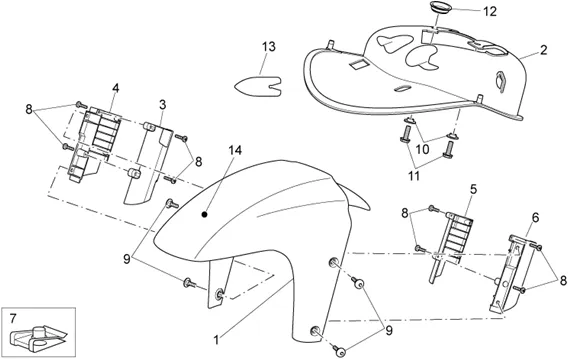

Chassis : 28.08 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/281/Sport_City_Cube_125_carb_E3_2008-2010_28.08.PNG)
1 |
89693100XN5 - GARDE-B AV.NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
89582900XD2 - GARDE-BOUE AV., BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
89582900XE4 - GARDE-BOUE AV., SILVER More informationQuantity required : 1 |
|||||||||
|
1 |
89582900XEL - GARDE-BOUE AV.GRIS More informationQuantity required : 1 |
|||||||||
|
1 |
89582900XN5 - GARDE-B AV.NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
89678200XR4 - GARDE-BOUE AVANT PEINT ROUGE More informationQuantity required : 1 |
|||||||||
|
1 |
89693100BM - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178078-CAPPELLO More informationQuantity required : 1 |
|||||||||
|
3 |
AP8163331-MORSETTO INTERNO MUDGUARD DX More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184242-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/6/3/img/72063.jpg)
4 |
COVER RIGHT FRONT MUDGUARD OEM APRILIA SPORT CITY 125-300 2004 > 2012-AP8163332 More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184244-CLAMP More informationQuantity required : 1 |
|||||||||
|
5 |
AP8163473-MORSETTO INTERNO MUDGUARD SX More informationQuantity required : 1 |
|||||||||
|
5 |
AP8184243-CLAMP More informationQuantity required : 1 |
|||||||||
|
6 |
AP8163474-MORSETTO ESTERNO MUDGUARD SX More informationQuantity required : 1 |
|||||||||
|
6 |
AP8184245-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
|||||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
9 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
10 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
|||||||||
|
12 |
AP8248897 - BOUCHON NOIR MET.; More informationQuantity required : 1 |
|||||||||
|
13 |
852081-PLATE More informationQuantity required : 2 |
|||||||||
|
14 |
896790-DECAL More informationQuantity required : 1 |
|||||||||
|
14 |
896917-DECAL More informationQuantity required : 1 |
|||||||||
