Vehicle Exploded View - APRILIA SPORT CITY 125 E2 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

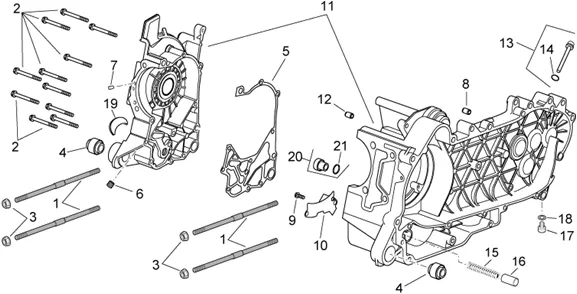

Moteur : 29.41 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/276/Sport_City_125_E2_2004-2006_29.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/4/img/70654.jpg)
1 |
STUD DE CYLINDER (8X151) OEM PIAGGIO COMMON A LA RANGE 125-250 ENGINE LEADER-1A003629R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
2 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 11 |
||||||
3 |
832870-NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
4 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
5 |
GASKET OF CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-875111 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/1/img/68851.jpg)
5 |
GASKET OF CASING ENGINE OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SR, SPORT-CITY, MOJITO-829526 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
6 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
7 |
BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
8 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
|
9 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
9 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
10 |
876657-TTLE More informationQuantity required : 1 |
||||||
|
11 |
CM1529035001 - CARTER - COUPLE More informationQuantity required : 1 |
||||||
|
11 |
CM1529035002 - CARTER - COUPLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 1 |
||||||
|
13 |
AP8550586 - TIGE NIVEAU HUILE COMPL. More informationQuantity required : 1 |
||||||
|
14 |
AP8550334 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
15 |
Ressort de soupape |
||||||
|
16 |
Oil pressure valve |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
17 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
19 |
WASHER ARRET CASING ENGINE OEM PIAGGIO 125-200-250 2013 <-840489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/1/img/69371.jpg)
20 |
BRACKET/INSERT OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-845861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
21 |
O-RING INSERT DOOR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-431065 More informationQuantity required : 1 |
