Vehicle Exploded View - APRILIA SPORT CITY 125 E2 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

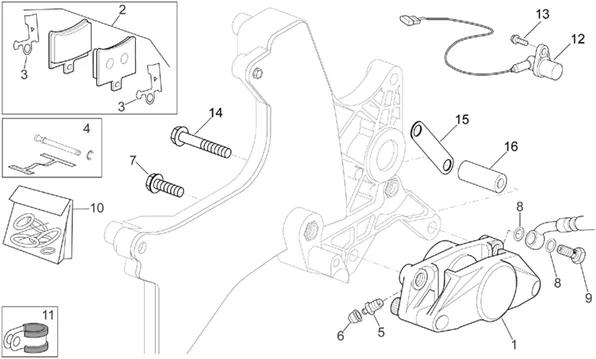

Chassis : 28.35 PINCE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/276/Sport_City_125_E2_2004-2006_28.35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/2/img/48782.jpg)
1 |
BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC-AP8133732 More informationQuantity required : 1 |
||||||
1 |
AP8133780 - PINZA FRENO POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/7/img/71667.jpg)
2 |
AP8133726 - PASTIGLIE-COPPIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
2 |
BRAKE PAD REAR OEM PIAGGIO APRILIA 125-300 ATLANTIC 2010 > (PAIRE)-AP8213577 More informationQuantity required : 1 |
||||||
|
3 |
AP8113870 - PLATINE ANTISIFF. AV-COUPLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/1/img/71331.jpg)
4 |
AP8113871-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
4 |
KIT SPRING BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO-AP8213578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
5 |
SCREW OF PURGE OEM PIAGGIO COMMON A LA RANGE SCOOTER/MAXI SCOOTER APRILIA-AP8113006 More informationQuantity required : 1 |
||||||
|
5 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
6 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
6 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
10 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
|
10 |
AP8213579-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
11 |
CLAMP GUIDE HOSE OF BRAKE OEM PIAGGIO COMMON A LA RANGE-AP8132907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/1/3/img/70813.jpg)
12 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA/APRILIA 125-250-300 SPORT-CITY, 250-300-400 SCARABEO, 125 RS-893570 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
14 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 1 |
||||||
|
15 |
AP8161043 - PIASTRINA SUPPORTO PINZA More informationQuantity required : 1 |
||||||
|
16 |
AP8161042 - BUSSOLA PER SUPPORTO PINZA More informationQuantity required : 1 |
