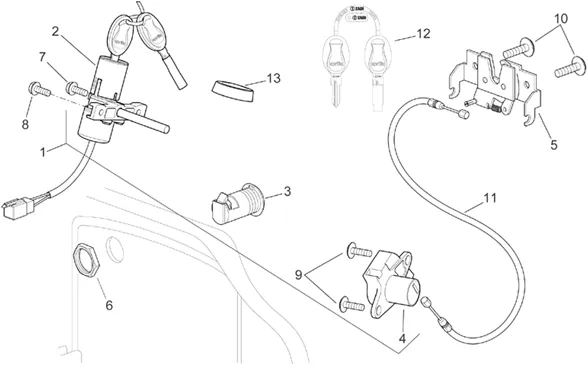

Chassis : 28.39 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/276/Sport_City_125_E2_2004-2006_28.39.PNG)
1 |
Kit serrures |
||||||
|
2 |
AP8590049 - BLOCCHETTO AVV.TO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
3 |
GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/2/img/71232.jpg)
4 |
LOCK SEAT OEM PIAGGIO APRILIA 250 LEONARDO, 125-250-300 ATLANTIC, 125-250 SPORT-CITY-AP8104611 More informationQuantity required : 1 |
||||||
|
5 |
LOCK DE SEAT OEM PIAGGIO APRILIA ATLANTIC 125-250 2003 > 2012, SR 50 2004 > 2014-AP8102947 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
6 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
8 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
|
11 |
AP8104422 - CABLE SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
12 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
13 |
GASKET BLOC DEMARRAGE NEIMAN OEM MOTO GUZZI STELVIO/V85-AP8127461 More informationQuantity required : 1 |
