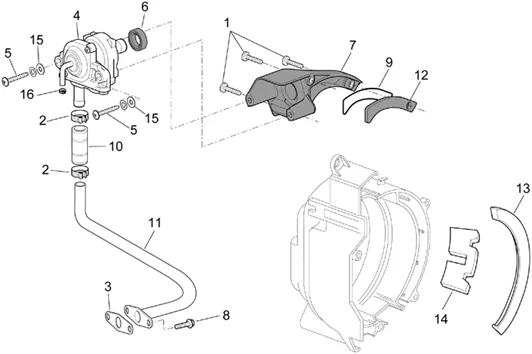

Chassis : 28.29 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/276/Sport_City_125_E2_2004-2006_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
1 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 3 |
||||||
2 |
Collier serr. Tube |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
3 |
GASKET CANALISATION RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 4T/MAXI SCOOTER 125-832059 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
4 |
VOLET/VALVE " S. A. S. " OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-82996R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
5 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 2 |
||||||
|
6 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/4/img/68954.jpg)
7 |
COVER OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-831255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
8 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 2 |
||||||
|
9 |
Joint |
||||||
|
10 |
Tuyau de raccord |
||||||
|
11 |
Tuyau |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/6/img/68956.jpg)
12 |
AIR FILTER SECONDAIRE OEM PIAGGIO APRILIA ATLANTIC 125-250 2003 > 2012/PIAGGIO BEVERLY, MP3, X7, X8, X9, X-EVO 125/VESPA GT 125-831257 More informationQuantity required : 1 |
||||||
|
13 |
834119 - COUVERCLE More informationQuantity required : 1 |
||||||
|
14 |
834153 - SOUNDPROOF ELEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
15 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
16 |
CLAMP HOSE (D8) OEM PIAGGIO COMMON A LA RANGE-AP8120179 More informationQuantity required : 1 |
