Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS 2017 (EMEA-LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

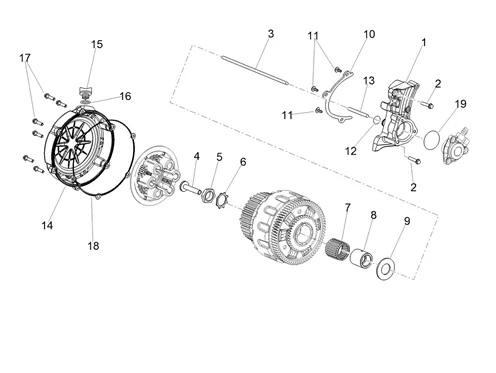

Moteur : 03.220 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/781/Shiver_900_E4_ABS_2017_(EMEA-LATAM)_03.220.PNG)
1 |
B013074-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/8/img/70428.jpg)
2 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-872421 More informationQuantity required : 2 |
||||||
|
3 |
874660-ROD More informationQuantity required : 1 |
||||||
|
4 |
B015050-ROD More informationQuantity required : 1 |
||||||
|
5 |
876790-NUT More informationQuantity required : 1 |
||||||
|
6 |
876296-WASHER More informationQuantity required : 1 |
||||||
|
7 |
974361-CAGE A AIGUILLE 35X40X35, 8 More informationQuantity required : 1 |
||||||
|
8 |
873543-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
9 |
WASHER CLUTCH OEM APRILIA COMMON A LA RANGE-974320 More informationQuantity required : 1 |
||||||
|
10 |
877193-TTLE More informationQuantity required : 1 |
||||||
|
11 |
878867-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/9/9/img/41299.jpg)
12 |
GASKET OF CONTROL CLUTCH OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO-871609 More informationQuantity required : 1 |
||||||
|
13 |
874191-BUTEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/0/5/0/img/205050.jpg)
14 |
COVER CLUTCH OEM APRILIA 900 DORSODURO, SHIVER 2017 >-2R000564 More informationQuantity required : 1 |
||||||
|
14 |
COVER CLUTCH OEM APRILIA 900 DORSODURO, SHIVER 2017 >-2R000564 More informationQuantity required : 1 |
||||||
|
15 |
CAP REMPLISSAGE OIL OEM APRILIA 900-1200 CAPONORD, DORSODURO, SHIVER-AP9150410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/5/0/img/61950.jpg)
16 |
O-RING (18. 72X2. 62) OEM PIAGGIO COMMON A LA RANGE-AP9150356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
17 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/7/6/img/61976.jpg)
18 |
GASKET COVER CLUTCH OEM APRILIA CAPONORD, DORSODURO, SHIVER-B013607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
19 |
OIL SEAL 8X16X7 RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO, SHIVER-825577 More informationQuantity required : 1 |
