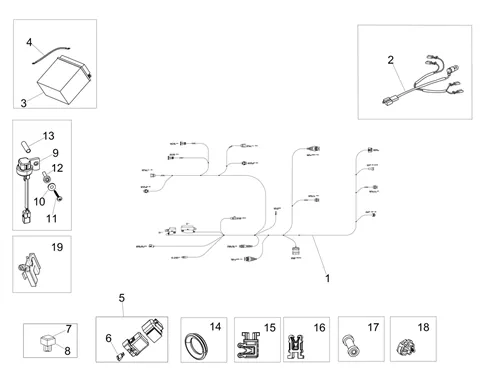

Dispositifs électriques : 11.030 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/781/Shiver_900_E4_ABS_2017_(EMEA-LATAM)_11.030.PNG)
1 |
2D000360-WIRING ENGINE More informationQuantity required : 1 |
|||||||||
|
2 |
859812-WIRING LAMP AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/6/img/67276.jpg)
3 |
BATTERY 12V 12AH YUASA YTX12-BS OEM PIAGGIO COMMON A LA RANGE-583158 More informationQuantity required : 1 |
|||||||||
|
4 |
851632-WIRING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
5 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
6 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
7 |
RELAIS INJECTION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-895481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
8 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/9/img/67969.jpg)
9 |
SENSOR ANTI-BASCULEMENT OEM APRILIA 660 TUAREG, MOTO GUZZI V85TT-642248 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
10 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248 More informationQuantity required : 1 |
|||||||||
|
11 |
AP8225369-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
12 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
|||||||||
|
13 |
2B004490-BUSH More informationQuantity required : 1 |
|||||||||
|
14 |
294754-GUIDE CABLE More informationQuantity required : 1 |
|||||||||
|
15 |
2D000348-CONNECTION More informationQuantity required : 1 |
|||||||||
|
16 |
1D000680-SPRING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/4/img/67044.JPG)
17 |
563989-GUIDE CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
18 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
|||||||||
|
19 |
641769-SPRING More informationQuantity required : 1 |
|||||||||
