Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS 2017 (EMEA-LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

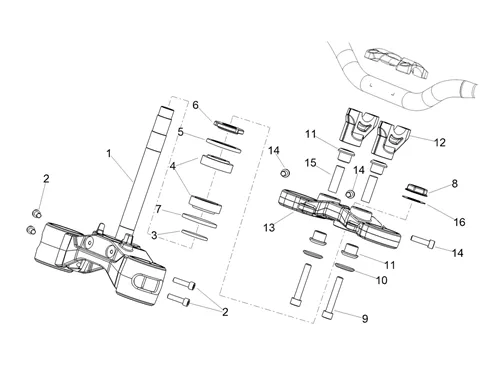

Guidon - commandes : 07.010 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/781/Shiver_900_E4_ABS_2017_(EMEA-LATAM)_07.010.PNG)
1 |
CM222601-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
2 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/9/3/img/42793.jpg)
3 |
WASHER DE STEERING OEM PIAGGIO DORSODURO, SHIVER APRILIA-897648 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/7/img/45837.jpg)
4 |
BEARING DE STEERING OEM PIAGGIO DORSODURO, SHIVER-AP8110106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/1/img/71751.jpg)
5 |
GASKET OF SET OF STEERING OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 BREVA, V7, NEVADA-AP8144146 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
6 |
NUT SERRAGE STEERING OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA-AP8163500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/1/0/img/97210.jpg)
7 |
GASKET PLATINE DE FORK 898386 INFERIEURE OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO-AP9100205 More informationQuantity required : 1 |
||||||
|
8 |
AP8123243-CAP TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
10 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 2 |
||||||
|
12 |
2B004160-CALIPER HANDLEBAR More informationQuantity required : 2 |
||||||
|
13 |
2B004274-PLATE More informationQuantity required : 1 |
||||||
|
14 |
AP8152187-SCREW TCEI M 8 X 30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
15 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
16 |
WASHER DE STEERING OEM APRILIA COMMON A LA RANGE-AP8152442 More informationQuantity required : 1 |
