Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS 2017 (EMEA-LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

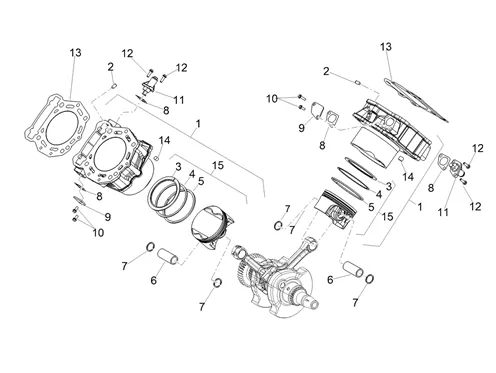

Moteur : 03.150 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/781/Shiver_900_E4_ABS_2017_(EMEA-LATAM)_03.150.PNG)
1 |
1A0080225-GROUP CYLINDER-PISTON More informationQuantity required : 2 |
||||||
|
2 |
874589 - GOUJON CALIBRE More informationQuantity required : 2 |
||||||
|
3 |
1A009782-PISTON RING More informationQuantity required : 2 |
||||||
|
4 |
1A008508-PISTON RING More informationQuantity required : 2 |
||||||
|
5 |
1A008509-PISTON RING More informationQuantity required : 2 |
||||||
|
6 |
1A008510-SPINDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
7 |
CIRCLIPS DE PISTON OEM PIAGGIO 500 MP3 2007 >-828116 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
8 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 2 |
||||||
|
9 |
840135-PLATE CIL. More informationQuantity required : 2 |
||||||
|
10 |
874554-SCREW FLANGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
11 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 2 |
||||||
|
11 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/5/img/70535.jpg)
12 |
SCREW TH BRIDEE M6X16 OEM PIAGGIO COMMON A LA RANGE-874555 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/1/2/img/41512.jpg)
13 |
CYLINDER HEAD GASKET OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO-878654 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
14 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 4 |
||||||
|
15 |
1A0085050A-PISTON CPL. A More informationQuantity required : 1 |
||||||
|
15 |
1A0085050B-PISTON CPL. B More informationQuantity required : 1 |
||||||
|
15 |
1A0085050C-PISTON CPL. C More informationQuantity required : 1 |
||||||
|
15 |
1A0085050D-PISTON CPL. D More informationQuantity required : 1 |
