Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 2000-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

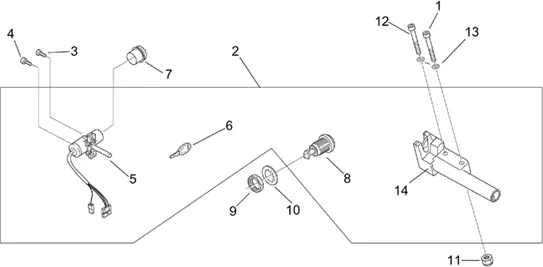

Chassis : 28.39 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
1 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284 More informationQuantity required : 1 |
||||||
2 |
AP8201846 - KIT SERRURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
3 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
|
5 |
AP8201793-BLOC STARTER MOTOR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
6 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
7 |
AP8220386-GASKET BLOC DEMARR. More informationQuantity required : 1 |
||||||
|
8 |
AP8104600-LOCK DOOR-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
|
12 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
13 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
|
14 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
