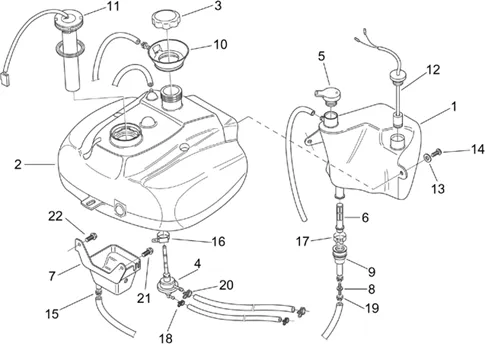

Chassis : 28.25 RESERVOIR HUILE ET CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.25.PNG)
1 |
AP8268514 - SERBATOIO OLIO SENZA SFIATO More informationQuantity required : 1 |
||||||
|
2 |
AP8258682 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
AP8258804 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
AP8238300 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
3 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
4 |
AP8201824-ROBINET FUEL A DEPRESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
5 |
CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
|
7 |
AP8220599 - CUVE COLLECTE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
8 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
9 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
|
10 |
AP8220465-RUBBER COLLECTE FUEL More informationQuantity required : 1 |
||||||
|
11 |
AP8212988-SONDE NIVEAU FUEL More informationQuantity required : 1 |
||||||
|
12 |
AP8212481-INDICATEUR RESERVE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
13 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
15 |
AP8102239-CLAMP CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
16 |
CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
17 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
18 |
CLAMP HOSE (D8) OEM PIAGGIO COMMON A LA RANGE-AP8120179 More informationQuantity required : 2 |
||||||
|
19 |
AP8101770-CLAMP CLIC More informationQuantity required : 3 |
||||||
|
20 |
AP8102377-CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
21 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
22 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
