Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 2000-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

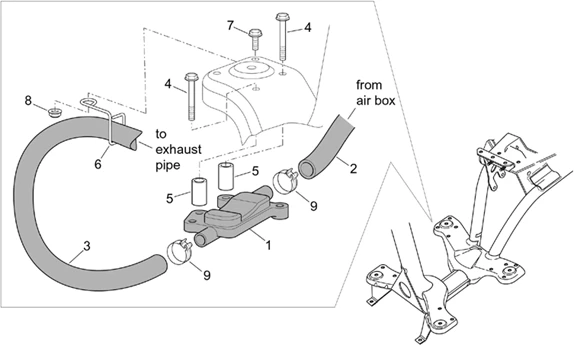

Chassis : 28.26 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.26.PNG)
1 |
AP8206989 - SOUPAPE SAS More informationQuantity required : 1 |
||||||
|
2 |
AP8220632 - TUYAU D'ASPIRATION More informationQuantity required : 1 |
||||||
|
3 |
AP8220633 - TUYAU AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
4 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
5 |
SPACER OEM APRILIA COMMON A LA RANGE-AP8101108 More informationQuantity required : 2 |
||||||
|
6 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
9 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 4 |
