Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 2000-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

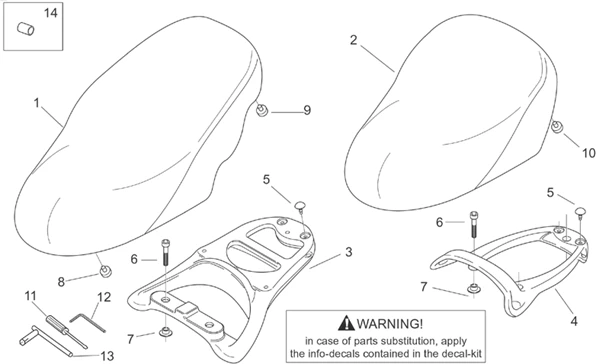

Chassis : 28.15 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.15.PNG)
1 |
AP8129281 - SELLE LONGUE MARRON; More informationQuantity required : 1 |
||||||
|
1 |
AP8129490 - SELLE NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8229362 - SELLE LONGUE BLEU More informationQuantity required : 1 |
||||||
|
1 |
AP8229381 - SELLA LUNGA BIC.GRIGIO/NERA More informationQuantity required : 1 |
||||||
|
1 |
AP8229392 - SELLA LUNGA GRIGIO SCURO More informationQuantity required : 1 |
||||||
|
2 |
AP8229310 - SELLE MARR.MONOPLACE; More informationQuantity required : 1 |
||||||
|
2 |
AP8229328 - SELLE GRISE MONOPLACE; More informationQuantity required : 1 |
||||||
|
2 |
AP8229341 - SELLE GRISE MONOPLACE; More informationQuantity required : 1 |
||||||
|
2 |
AP8229342 - SELLE BLEU MONOPLACE; More informationQuantity required : 1 |
||||||
|
2 |
Selle rouge monoplace; |
||||||
|
2 |
AP8229380 - SELLA BICOLORE GRIGIO/NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8229391 - SELLA GRIGIO SCURO More informationQuantity required : 1 |
||||||
|
2 |
AP8229416 - SELLE NOIR More informationQuantity required : 1 |
||||||
|
3 |
Porte-bag. gris long; |
||||||
|
3 |
AP8258738 - PORTE-BAG.SILVER LONG; More informationQuantity required : 1 |
||||||
|
4 |
AP8249882 - PORTE-BAGAGES GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8258502 - PORTE-BAGAGES PEINT SILVER; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
5 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
6 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
7 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
8 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 1 |
||||||
|
9 |
AP8220517 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 6 |
||||||
|
10 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 4 |
||||||
|
11 |
AP8201884-SCREWDRIVER More informationQuantity required : 1 |
||||||
|
12 |
AP8202286-CLE More informationQuantity required : 1 |
||||||
|
13 |
AP8202285-SOCKET SPANNER More informationQuantity required : 1 |
||||||
|
14 |
AP8221345 - DOUILLE ENTRETOISE More informationQuantity required : 3 |
