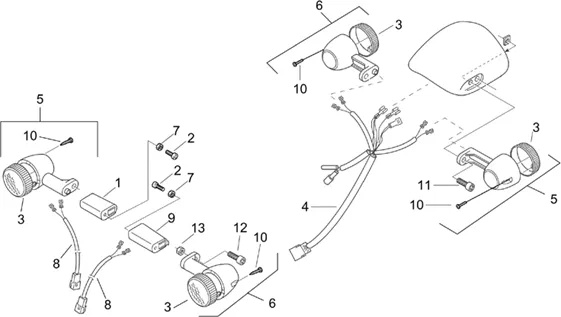

Chassis : 28.31 INDICATEURS DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/601/Scarabeo_50_2T_Mot_Minarelli_1999_28.31.PNG)
1 |
AP8221303-SPACER AV. D. More informationQuantity required : 1 |
||||||
|
2 |
AP8150052-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
3 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
3 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 4 |
||||||
|
4 |
AP8212550 - CABLAGE FEU/CLIGN.AR; More informationQuantity required : 1 |
||||||
|
5 |
AP8212699-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 2 |
||||||
|
5 |
AP8224252 - CLIGNOT.AV.DR./ARR.GA.; More informationQuantity required : 2 |
||||||
|
6 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 2 |
||||||
|
6 |
AP8224253 - CLIGNOT.AV.GA./ARR.DR.; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
8 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 2 |
||||||
|
8 |
AP8224257 - CABLAGE CLIGNOTANT; More informationQuantity required : 2 |
||||||
|
9 |
AP8221305 - ENTRETOISE AV. G. More informationQuantity required : 1 |
||||||
|
10 |
AP8224268 - VIS More informationQuantity required : 4 |
||||||
|
11 |
AP8224267 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
12 |
SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 2 |
