Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

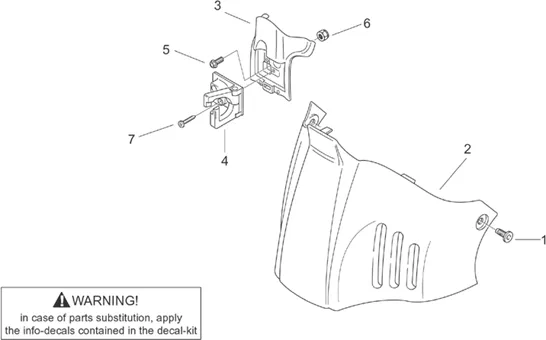

Chassis : 28.14 CARROSSERIE CENTRALE III - CV R. PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/601/Scarabeo_50_2T_Mot_Minarelli_1999_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
1 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
1 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
|
2 |
Couv.cont.p.vert l. |
|||||||||
|
2 |
AP8248431 - COUVERCLE INSP., NOIR TRANS. More informationQuantity required : 1 |
|||||||||
|
2 |
Couvercle insp., rouge |
|||||||||
|
2 |
AP8248605 - COUVERCLE INSP., BLANC More informationQuantity required : 1 |
|||||||||
|
2 |
Couvercle insp., bleu |
|||||||||
|
2 |
Couvercle insp., bleu |
|||||||||
|
2 |
AP8248608 - COUV.CONT.P.ROUGE M. More informationQuantity required : 1 |
|||||||||
|
2 |
Couvercle insp., bleu |
|||||||||
|
2 |
Couvercle insp., bleu |
|||||||||
|
2 |
Couv. insp.jaune. |
|||||||||
|
2 |
Couvercle insp., bleu |
|||||||||
|
3 |
C-charn. selle, noir trans. |
|||||||||
|
3 |
C-charn. selle, rouge cerise |
|||||||||
|
3 |
C-charn. selle, blanc |
|||||||||
|
3 |
C-charn. selle, bleu |
|||||||||
|
3 |
C-charn. selle, bleu |
|||||||||
|
3 |
Couv.ch.selle p.r.m. |
|||||||||
|
3 |
C-charn. selle, bleu |
|||||||||
|
3 |
C-charn. selle, bleu |
|||||||||
|
3 |
Couv-charn.selle j. |
|||||||||
|
3 |
C-charn. selle, bleu |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
4 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
5 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
|||||||||
