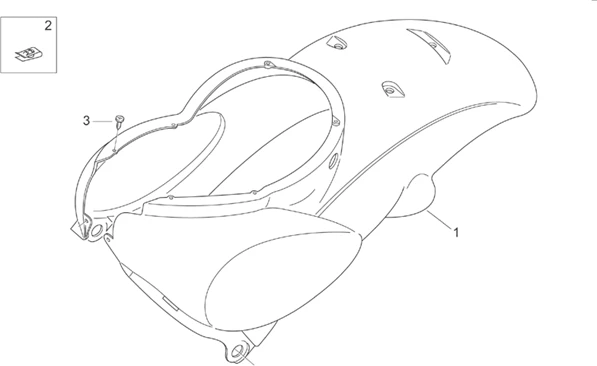

Chassis : 28.16 CARROSSERIE ARRIÉRE I - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/601/Scarabeo_50_2T_Mot_Minarelli_1999_28.16.PNG)
1 |
Queue, vert linfa; |
||||||
|
1 |
AP8248432 - QUEUE, NOIR TRANS. More informationQuantity required : 1 |
||||||
|
1 |
Queue, rouge cerise |
||||||
|
1 |
AP8248502 - QUEUE, BLANC LUNAIRE More informationQuantity required : 1 |
||||||
|
1 |
Qu. car. bl. cyber |
||||||
|
1 |
AP8248542 - QU. CAREN.BL. NUIT More informationQuantity required : 1 |
||||||
|
1 |
AP8248558 - QUEUE CAR.P.RG.MOODY More informationQuantity required : 1 |
||||||
|
1 |
Queue car.p.bleu tw. |
||||||
|
1 |
Qu. carén.bl. électr. |
||||||
|
1 |
Qu. carén.jau. paille |
||||||
|
1 |
Qu. car. bl. cyber; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
