Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

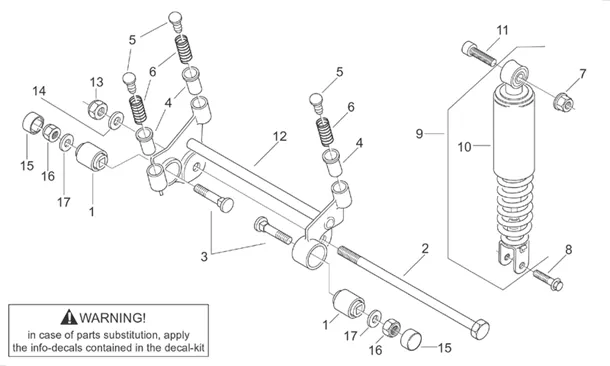

Chassis : 28.05 SUSPENSION AR. - BIELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/601/Scarabeo_50_2T_Mot_Minarelli_1999_28.05.PNG)
1 |
AP8220336 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
2 |
AP8221160-PIVOT BRACKET ENGINE More informationQuantity required : 1 |
||||||
|
3 |
AP8221184-PIVOT MOUNTING BIELLETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
4 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8220460 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/2/img/72282.jpg)
5 |
AP8220396 - TIGE More informationQuantity required : 3 |
||||||
|
6 |
AP8221215 - RESSORT BIELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
|
9 |
AP8203946 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
10 |
AP8203935 - PROTECTION AMORTISSEUR More informationQuantity required : 1 |
||||||
|
11 |
AP8150048-SCREW More informationQuantity required : 1 |
||||||
|
12 |
AP8232984 - BIELLETTE FIXATION MOTEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
14 |
WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101 More informationQuantity required : 1 |
||||||
|
15 |
AP8220368 - COUVERCLE ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
17 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 2 |
