Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

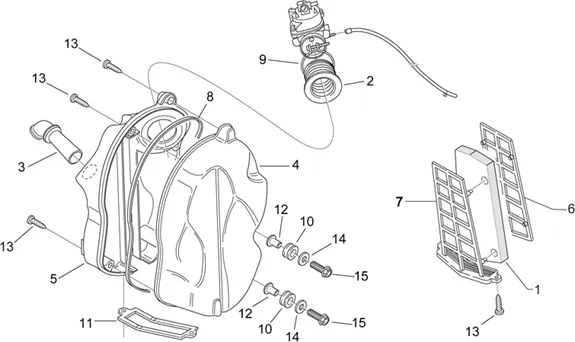

Chassis : 28.23 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.23.PNG)
1 |
AP8201583 - FILTRE AIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8144248-CARBURETTOR SLEEVE More informationQuantity required : 1 |
||||||
|
3 |
AP8220467-SLEEVE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
4 |
AP8231176-COVER BODY FILTER More informationQuantity required : 1 |
||||||
|
5 |
AP8231177-BODY FILTER More informationQuantity required : 1 |
||||||
|
6 |
AP8231477-GRILLE BODY FILTER FRONT More informationQuantity required : 1 |
||||||
|
7 |
AP8231513-COVER FILTER WITH GRILLE More informationQuantity required : 1 |
||||||
|
8 |
AP8220391-GASKET BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/0/img/57010.jpg)
9 |
AP8221159-CLAMP HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
10 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220370 More informationQuantity required : 2 |
||||||
|
11 |
AP8220333 - JOINT CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
12 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
14 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
