Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

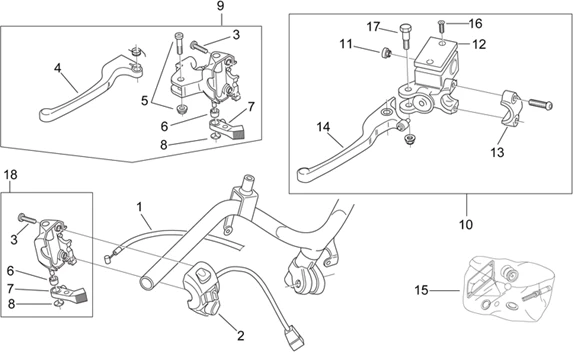

Chassis : 28.20 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.20.PNG)
1 |
AP8214124 - CABLE STARTER; More informationQuantity required : 1 |
||||||
|
2 |
AP8224465-DEVIO GCHE + CABL. More informationQuantity required : 1 |
||||||
|
2 |
Dévio gche+câbl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
3 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 2 |
||||||
|
3 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 2 |
||||||
|
4 |
AP8218329-LEVER GCHE POLI More informationQuantity required : 1 |
||||||
|
5 |
Pivot levier frein; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/2/img/72262.jpg)
6 |
ENCLENCHEMENT CONIQUE CONTROL OF CHOKE OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-AP8218116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/1/img/72261.jpg)
7 |
LEVER DE STARTER OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2010 >/APRILIA SX, RX 2011 >-AP8218115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/3/img/72263.jpg)
8 |
AGRAFE CONTROL OF CHOKE OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-AP8218117 More informationQuantity required : 1 |
||||||
|
9 |
AP8218296-LEVER BRAKE REAR More informationQuantity required : 1 |
||||||
|
10 |
AP8213307 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
11 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
12 |
AP8213475-COVER PUMP More informationQuantity required : 1 |
||||||
|
13 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/0/img/46330.jpg)
14 |
BRAKE LEVER ARIRERE OEM PIAGGIO APRILIA 50 SCARABEO 2T 1998 > 2006, 125 LEONARDO 1996 > 1998-AP8118461 More informationQuantity required : 1 |
||||||
|
15 |
AP8113636 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
16 |
AP8221200-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
|
17 |
AP8221231 - PIVOT DE LEVIER FREIN AV. More informationQuantity required : 1 |
||||||
|
18 |
AP8218235-SUP-START-DEV. GCHE More informationQuantity required : 1 |
