Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998 APRILIA

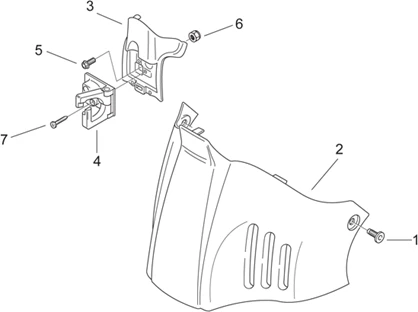

Chassis : 28.14 CARROSSERIE CENTRALE III - CV R. PIEDS
Carrosserie centrale III - cv r. pieds
Search
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

1
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

1
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 2

Couvercle insp., noir

2
P2R reference P2R reference
Maker reference Maker reference AP8239761

Couvercle insp., noir

Couvercle insp., gris

2
P2R reference P2R reference
Maker reference Maker reference AP8239778

Couvercle insp., gris

Couv.cont.p.vert l.

2
P2R reference P2R reference
Maker reference Maker reference AP8239792

Couv.cont.p.vert l.

AP8239798 - COUVERCLE INSP., BLEU;

2
P2R reference P2R reference 58401
Maker reference Maker reference AP8239798

AP8239798 - COUVERCLE INSP., BLEU;

More information

Quantity required : 1

Couvercle insp., beige;

2
P2R reference P2R reference
Maker reference Maker reference AP8239848

Couvercle insp., beige;

AP8239919 - COUVERCLE INSP., BLEU;

2
P2R reference P2R reference 58412
Maker reference Maker reference AP8239919

AP8239919 - COUVERCLE INSP., BLEU;

More information

Quantity required : 1

Couvercle insp., marron;

2
P2R reference P2R reference
Maker reference Maker reference AP8239922

Couvercle insp., marron;

Couvercle insp., marron trans.;

2
P2R reference P2R reference
Maker reference Maker reference AP8248280

Couvercle insp., marron trans.;

Couvercle insp., bleu trans.;

2
P2R reference P2R reference
Maker reference Maker reference AP8248282

Couvercle insp., bleu trans.;

Couvercle insp., blanc

2
P2R reference P2R reference
Maker reference Maker reference AP8238925

Couvercle insp., blanc

AP8248431 - COUVERCLE INSP., NOIR TRANS.

2
P2R reference P2R reference 58582
Maker reference Maker reference AP8248431

AP8248431 - COUVERCLE INSP., NOIR TRANS.

More information

Quantity required : 1

Couvercle insp., rouge

2
P2R reference P2R reference
Maker reference Maker reference AP8248446

Couvercle insp., rouge

C-charn. selle, bleu ciel

3
P2R reference P2R reference
Maker reference Maker reference AP8238916

C-charn. selle, bleu ciel

C-charn. selle, blanc

3
P2R reference P2R reference
Maker reference Maker reference AP8238927

C-charn. selle, blanc

C-charn. selle, marr.;

3
P2R reference P2R reference
Maker reference Maker reference AP8239372

C-charn. selle, marr.;

C-charn. selle, beige

3
P2R reference P2R reference
Maker reference Maker reference AP8239639

C-charn. selle, beige

C-charn. selle, gris

3
P2R reference P2R reference
Maker reference Maker reference AP8239772

C-charn. selle, gris

C-charn. selle, noir trans.

3
P2R reference P2R reference
Maker reference Maker reference AP8248424

C-charn. selle, noir trans.

C-charn. selle, noir

3
P2R reference P2R reference
Maker reference Maker reference AP8239856

C-charn. selle, noir

C-charn. selle, bleu

3
P2R reference P2R reference
Maker reference Maker reference AP8239930

C-charn. selle, bleu

C-charn. selle, marron trans.;

3
P2R reference P2R reference
Maker reference Maker reference AP8248275

C-charn. selle, marron trans.;

C-charn. selle, bleu trans.;

3
P2R reference P2R reference
Maker reference Maker reference AP8248291

C-charn. selle, bleu trans.;

C-charn. selle, rouge cerise

3
P2R reference P2R reference
Maker reference Maker reference AP8248439

C-charn. selle, rouge cerise

ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534

4
P2R reference P2R reference 72135
Maker reference Maker reference AP8201534

ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534

More information

Quantity required : 1

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

5
P2R reference P2R reference 71938
Maker reference Maker reference AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451

6
P2R reference P2R reference 71889
Maker reference Maker reference AP8150451

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451

More information

Quantity required : 2

SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423

7
P2R reference P2R reference 71880
Maker reference Maker reference AP8150423

SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423

More information

Quantity required : 2
