Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

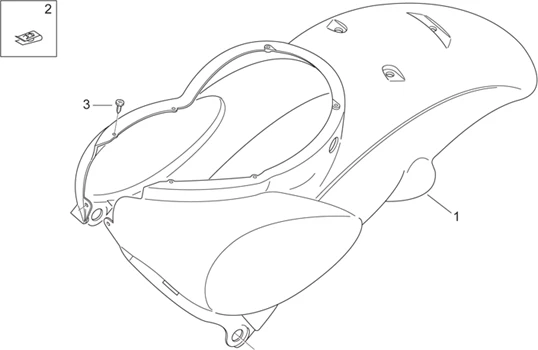

Chassis : 28.16 CARROSSERIE ARRIÉRE I - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.16.PNG)
1 |
Queue, noir aprilia |
||||||
|
1 |
Queue, gris |
||||||
|
1 |
Queue, vert linfa; |
||||||
|
1 |
Queue, bleu saphir; |
||||||
|
1 |
Queue, beige; |
||||||
|
1 |
Queue, bleu ciel; |
||||||
|
1 |
Queue, marron azt.; |
||||||
|
1 |
Queue, marron trans.; |
||||||
|
1 |
Queue, bleu trans.; |
||||||
|
1 |
Queue, blanc |
||||||
|
1 |
AP8248432 - QUEUE, NOIR TRANS. More informationQuantity required : 1 |
||||||
|
1 |
Queue, rouge cerise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
