Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

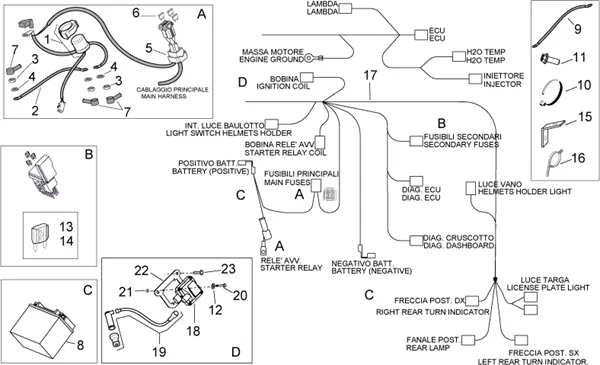

Chassis : 28.30 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
1 |
RELAIS DE STARTER MOTOR OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO V2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO, 125 LEONADO, 850 MANA-AP81129276 More informationQuantity required : 1 |
||||||
2 |
639737 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
3 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
4 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
5 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
||||||
|
6 |
Fusible |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.jpg)
7 |
CAPUCHON/PROTECTOR COSSE OEM PIAGGIO COMMON A LA RANGE-581061 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/6/img/67276.jpg)
8 |
BATTERY 12V 12AH YUASA YTX12-BS OEM PIAGGIO COMMON A LA RANGE-583158 More informationQuantity required : 1 |
||||||
|
9 |
AP8127839 - CAVO MASSA BATTERIA TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
12 |
012554-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
13 |
BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507 More informationQuantity required : 2 |
||||||
|
14 |
977772-FUSIBLE 15A More informationQuantity required : 3 |
||||||
|
15 |
584305-BRACKET More informationQuantity required : 1 |
||||||
|
16 |
582153-CLAMP More informationQuantity required : 1 |
||||||
|
17 |
852280 - CABLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/7/img/67207.jpg)
18 |
BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9, GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC-58120R More informationQuantity required : 1 |
||||||
|
19 |
853041 - H.T. CABLE WIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/9/img/67279.jpg)
20 |
SCREW CRUCIFORME (3X20) OEM PIAGGIO COMMON A LA RANGE-583236 More informationQuantity required : 4 |
||||||
|
21 |
AP8152502-DADO M3 More informationQuantity required : 4 |
||||||
|
22 |
624188-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
23 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
