Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

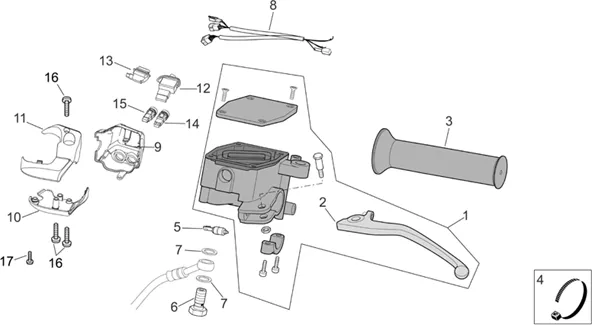

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.17.PNG)
1 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO APRILIA125 SCARABEO-AP8133558 More informationQuantity required : 1 |
||||||
|
1 |
AP8133733 - POMPA FRENO POST.SX More informationQuantity required : 1 |
||||||
|
2 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
2 |
AP8133809-LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
5 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
8 |
851774 - CABLAGE CLIGNOTANTS More informationQuantity required : 1 |
||||||
|
9 |
851806-BRACKET More informationQuantity required : 1 |
||||||
|
10 |
851808-COMPLETE REAR COVER More informationQuantity required : 1 |
||||||
|
11 |
851810 - COUVERCLE COMMUTATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/6/img/67806.jpg)
12 |
CONTACTEUR/SWITCH DE INDICATOR OEM PIAGGIO 125-250-500 X9/APRILIA 250-300-400-500 SCARABEO-638708 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
13 |
SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
14 |
BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/5/img/67265.jpg)
15 |
BUTTON WARNING OEM PIAGGIO 125-250-400 MP3, X-EVO, X9/APRILIA 250-300-400-500 SCARABEO-58284R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
16 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
