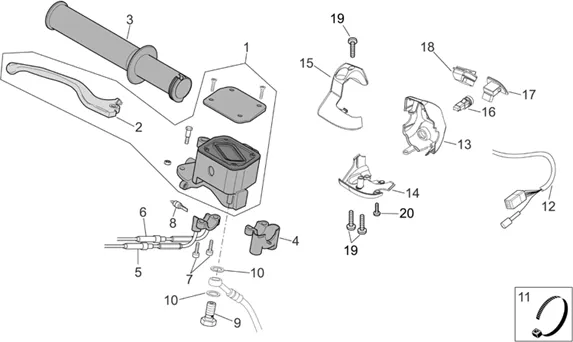

Chassis : 28.18 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.18.PNG)
1 |
AP8133582-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
1 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- More informationQuantity required : 1 |
||||||
|
2 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
2 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO-AP8133811 More informationQuantity required : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
4 |
AP8118582-SIEGE COMM. THROTTLE More informationQuantity required : 1 |
||||||
|
5 |
852435 - TRASMISSION GAZ More informationQuantity required : 1 |
||||||
|
6 |
852436 - TRASMISSION GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
8 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
|
12 |
642989 - DEVIO DTE+CABL. More informationQuantity required : 1 |
||||||
|
13 |
851807 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
851809 - COMPLETE REAR COVER More informationQuantity required : 1 |
||||||
|
15 |
851811-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
16 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
17 |
CAP/OBTURATEUR DE PANEL DE EDGE OEM PIAGGIO COMMON A LA RANGE-AP8127896 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
18 |
SWITCH ARRET ENGINE/COUPE CIRCUIT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-641824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
20 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
