Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

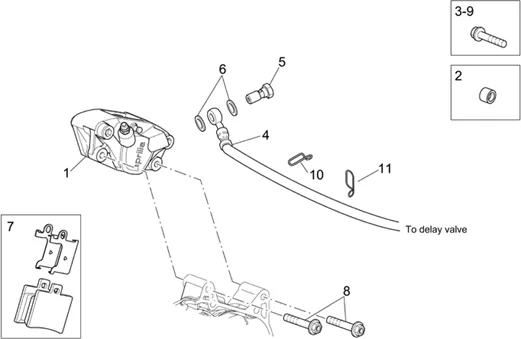

Chassis : 28.26 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.26.PNG)
1 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO -AP8133626- More informationQuantity required : 1 |
||||||
|
1 |
AP8133852 - PINZA FRENO POST.D.30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.jpg)
2 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
3 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
|
4 |
852344-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
7 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET-AP8113869 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
7 |
BRAKE PAD REAR OEM PIAGGIO APRILIA 125-300 ATLANTIC 2010 > (PAIRE)-AP8213577 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
10 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
AP8121889-GUIDE-CABLE More informationQuantity required : 1 |
