Vehicle Exploded View - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

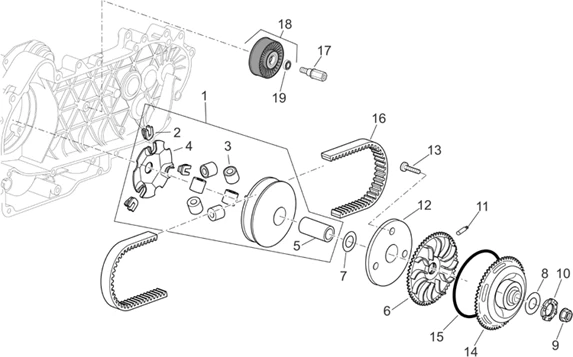

Moteur : 29.57 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_29.57.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/1/img/157621.jpg)
00 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 125 BEVERLY 2005 > 2012, CARNABY 2007 > 2010, X10 2012 >/APRILIA 125 SCARABEO 2002 > 2006, SPORT-CITY 2004 > 2010-1R000450 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-CM144403 More informationQuantity required : 1 |
||||||
1 |
Demi-poulie motrice |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/1/img/66691.jpg)
3 |
GALET/ROLLER OEM PIAGGIO 180 HEXAGON 4T, X9, 200 X9, X8, VESPA GRANTURISMO/GILERA 180 RUNNER, DNA/APRILIA 200 ATLANTIC (SET OF 6)-4857135 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
4 |
FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204 More informationQuantity required : 1 |
||||||
|
5 |
483889-SPACER More informationQuantity required : 1 |
||||||
|
6 |
834774-HALF PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
6 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
8 |
WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
9 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/7/img/68667.jpg)
10 |
OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/0/img/66420.jpg)
11 |
VARIATOR PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -432204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/3/img/69013.jpg)
12 |
PLATE FOR JOUE FIXE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 ENGINE LEADER-832715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
13 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
|
14 |
840815 - LIMITEUR More informationQuantity required : 1 |
||||||
|
15 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/9/img/69209.jpg)
16 |
BELT OEM APRILIA 125 SPORT-CITY 2006 > 2010, SCARABEO 2003 >-842011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/6/8/2/img/176682.jpg)
16 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456 More informationQuantity required : 1 |
||||||
|
16 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/8/img/68838.jpg)
17 |
SCREW SPECIALE DE PULLEY TENSION BELT OEM PIAGGIO 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO-829326 More informationQuantity required : 1 |
||||||
|
18 |
Poulie dentée |
||||||
|
19 |
82577R-BEARING More informationQuantity required : 1 |
