Vehicle Exploded View - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

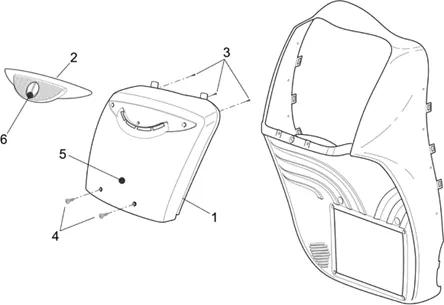

Chassis : 28.11 CARROSSERIE AV. - FRONTAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.11.PNG)
1 |
AP8184073 - COVERING RED More informationQuantity required : 1 |
||||||
|
1 |
AP8184185 - More informationQuantity required : 1 |
||||||
|
1 |
AP8184196 - COVERING GREY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/9/6/7/img/53967.jpg)
2 |
ENJOLIVEUR DE UNDERSEAT COMPARTMENT OEM PIAGGIO APRILIA 125-250 SCARABEO 2004 > 2006-AP8178361 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
3 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
4 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
|
5 |
AP8166372 - TARGHETTA APRILIA COFANO ANT. More informationQuantity required : 1 |
||||||
|
6 |
AP8166383 - TARGHETTA PLANCIA ANT. More informationQuantity required : 1 |
