Vehicle Exploded View - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

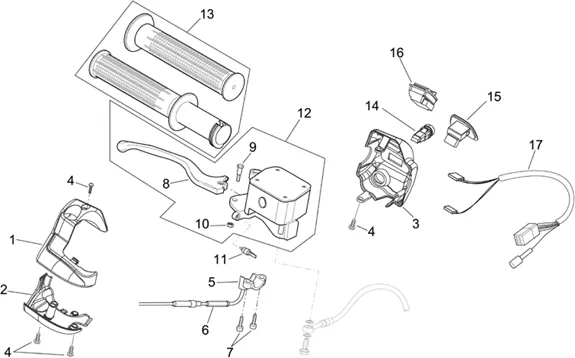

Chassis : 28.25 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.25.PNG)
1 |
851811-BRACKET More informationQuantity required : 1 |
||||||
|
2 |
851809 - COMPLETE REAR COVER More informationQuantity required : 1 |
||||||
|
3 |
851807 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
4 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 4 |
||||||
|
5 |
AP8118582-SIEGE COMM. THROTTLE More informationQuantity required : 1 |
||||||
|
6 |
AP8114476 - CAVO GAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
7 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
|
8 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
8 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO-AP8133811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
9 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
9 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
10 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
10 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
11 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
12 |
AP8133582-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
12 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- More informationQuantity required : 1 |
||||||
|
13 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
14 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
15 |
CAP/OBTURATEUR DE PANEL DE EDGE OEM PIAGGIO COMMON A LA RANGE-AP8127896 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
16 |
SWITCH ARRET ENGINE/COUPE CIRCUIT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-641824 More informationQuantity required : 1 |
||||||
|
17 |
852333 - CABLAGE More informationQuantity required : 1 |
